- Type:BALL VALVES
- Place of Origin:CN
- Application:General
- Temperature of Media:Low Temperature
- Power:Manual
- Media:Water
- Structure:Ball
- Brand Name:Suntex
- Model Number:STV-H04-C
- Port Size:1/2''-2''
Product Description
Valves to connect main pipe to house by saddle connection for water feeding

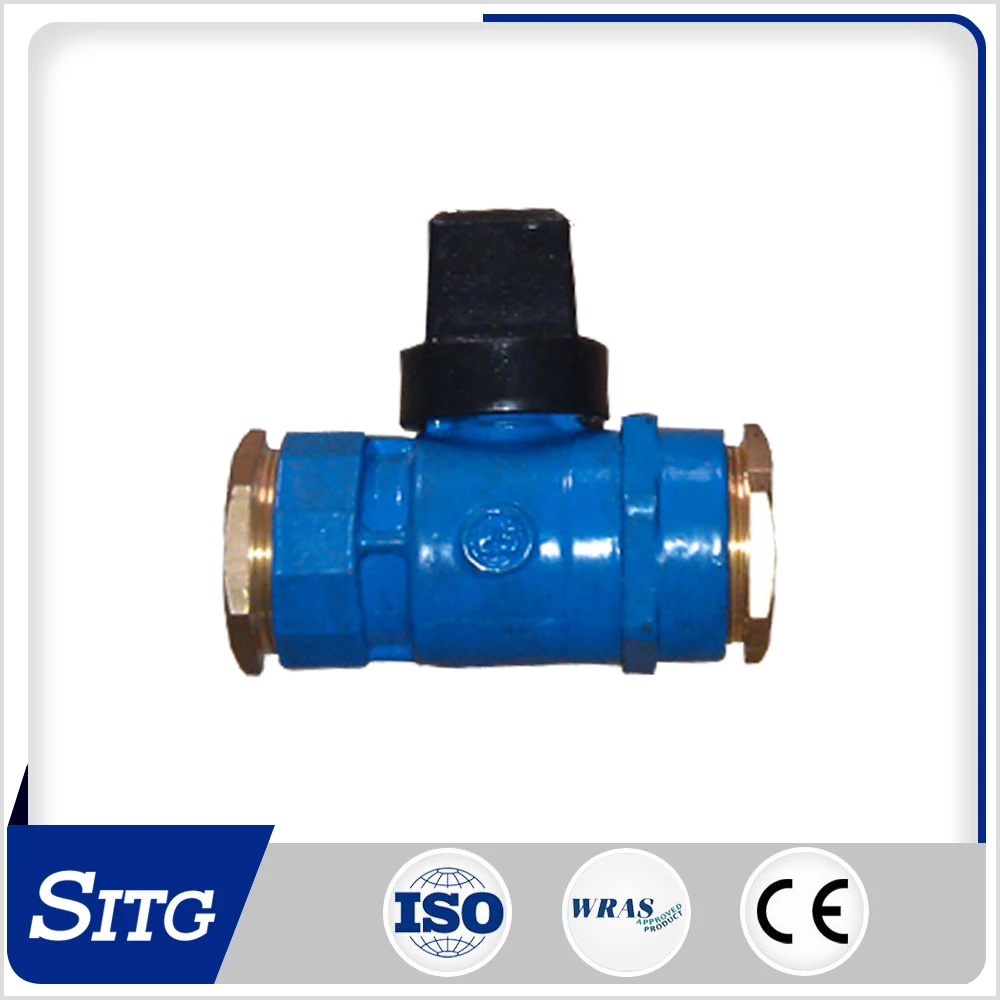

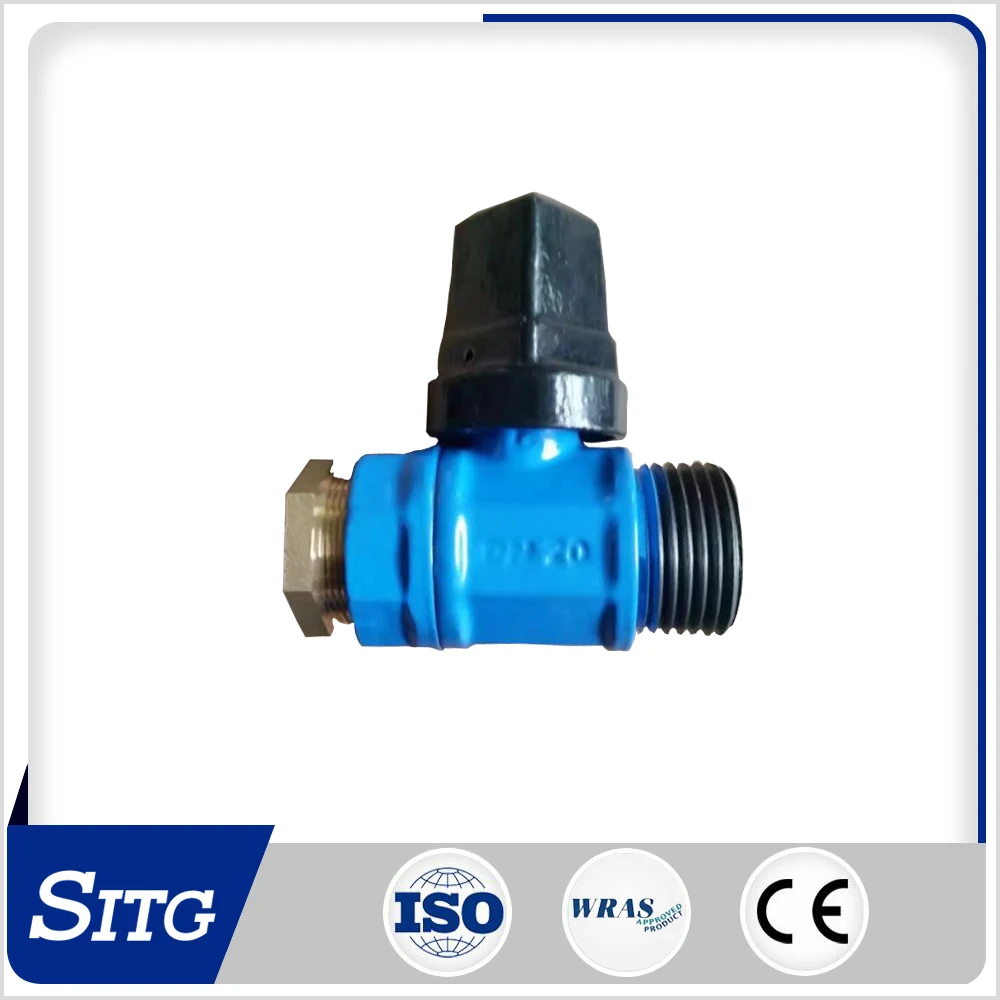

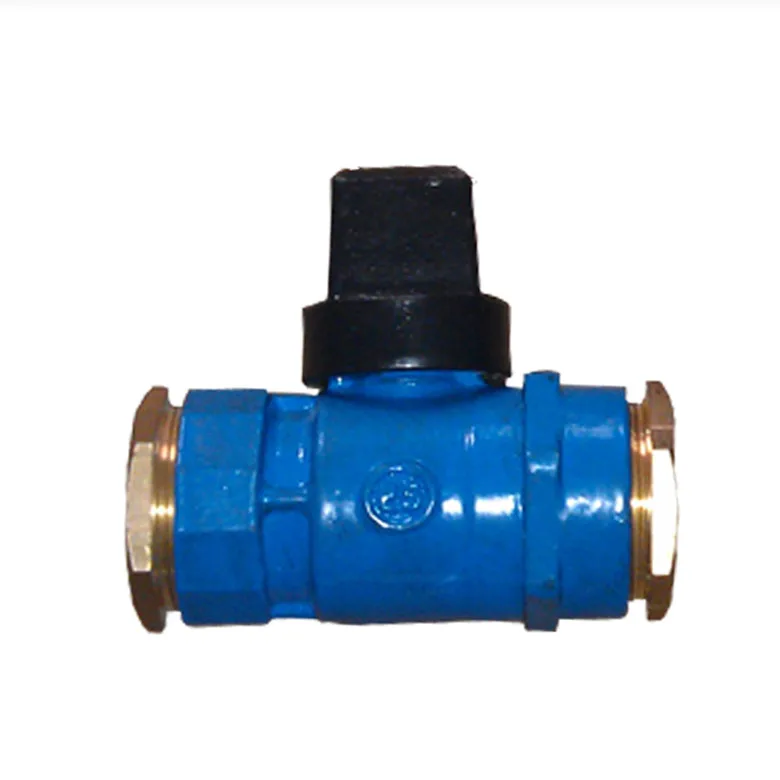

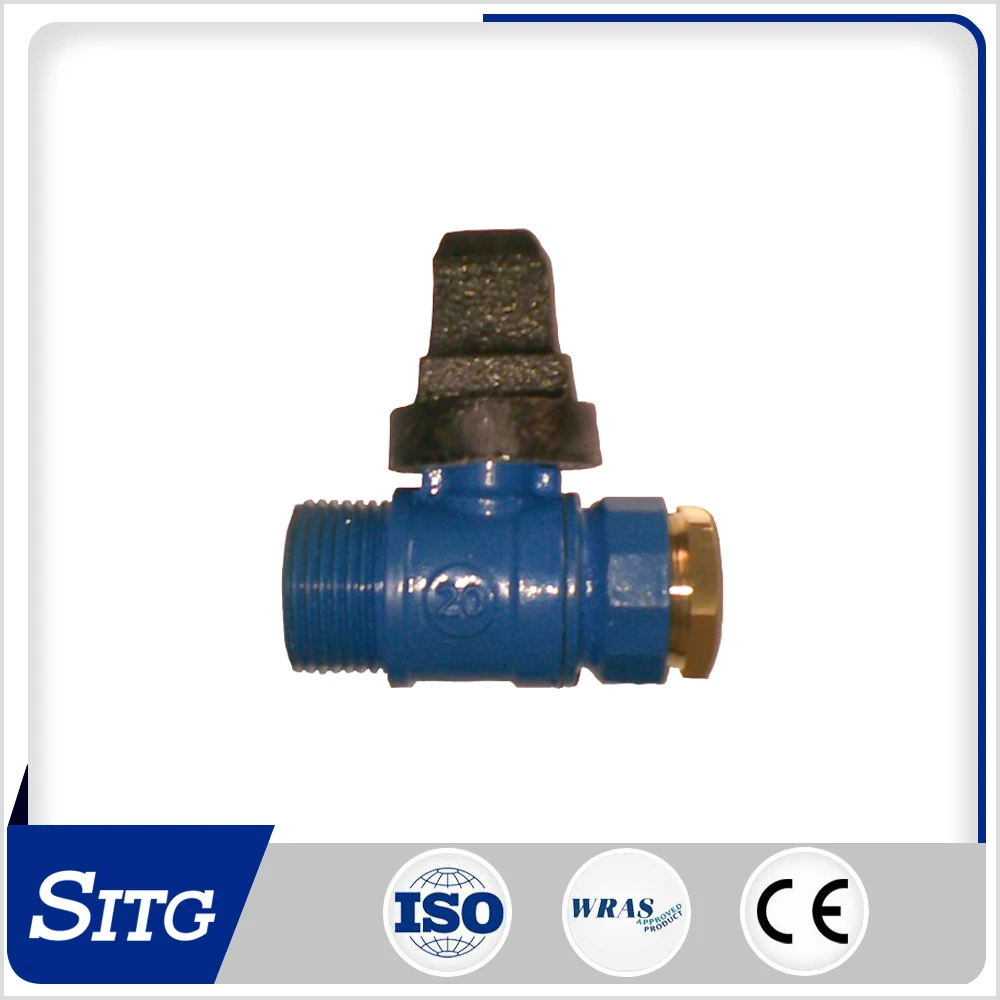

House connection valves (service valve), also called Europe valve, Flat Type
use for connection of main pipe line to household pipe for water feeding
Materials: GGG BODY
2Cr13 SPINDLE
BRASS STEM NUT
SIZE AVAILABLE:
1-1/4"M X 1"F
1-1/4"M X 1-1/4"F
2"MX 1-1/4"F
2"M X 1-1/2"F
2'M X 2"F
Working pressure: PN10/16
for water feeding pipe line
1/2"-2"PN16
Certificate: ISO9001
House connection valves (service valve), also called Europe valve, Flat Type
use for connection of main pipe line to household pipe for water feeding
Materials: GGG BODY
2Cr13 SPINDLE
BRASS STEM NUT
SIZE AVAILABLE:
1-1/4"M X 1"F
1-1/4"M X 1-1/4"F
2"MX 1-1/4"F
2"M X 1-1/2"F
2'M X 2"F
Working pressure: PN10/16
for water feeding pipe line
1/2"-2"PN16
Certificate: ISO9001
BODY | DUCTILE IRON |
SPINDLE | 2Cr13 |
STEM NUT | BRASS |
CAP | DUCTILE IRON |
ITEM CODE | STV-H04-C |
APPLICATION | WATER PIPE |
DN | dn | Unit Weight (Kg) |
3/4'' | 3/4'' | 3.68 |
1'' | 1'' | 3.6 |
1-1/4'' | 1-1/4'' | 3.9 |
1-1/2'' | 1-1/2'' | 5.7 |
2'' | 2'' | 5.6 |
