Diaphragm Type Remote Float Control Valve for Water Pipeline

Diaphragm Type Remote Float Control Valve for Water Pipeline

Model NO.: DC-100
Price:: US $ 30.00-200.00 / sets
Minimum order quantity: 10 sets
Supply Ability: 1000.0 sets / Month
Country of Origin: Tianjin

Quantity:

Product Description

Application:Water Pipe System
Certificate:ISO9001
Packing:Plywood Case
Specification:DN50-DN200
Working Pressure:PN10/16
Feature:Easily Assembled
Body material:Ductile Iron
Function:Water Level Control
Type:Float Valves
Application:General
Temperature of Media:Normal Temperature
Power:Hydraulic
Media:Water
Structure:Diaphragm
Place of Origin:CN;HEB
Brand Name:SITG
Model Number:STV-CV01
Port Size:DN50-DN200

Product Description

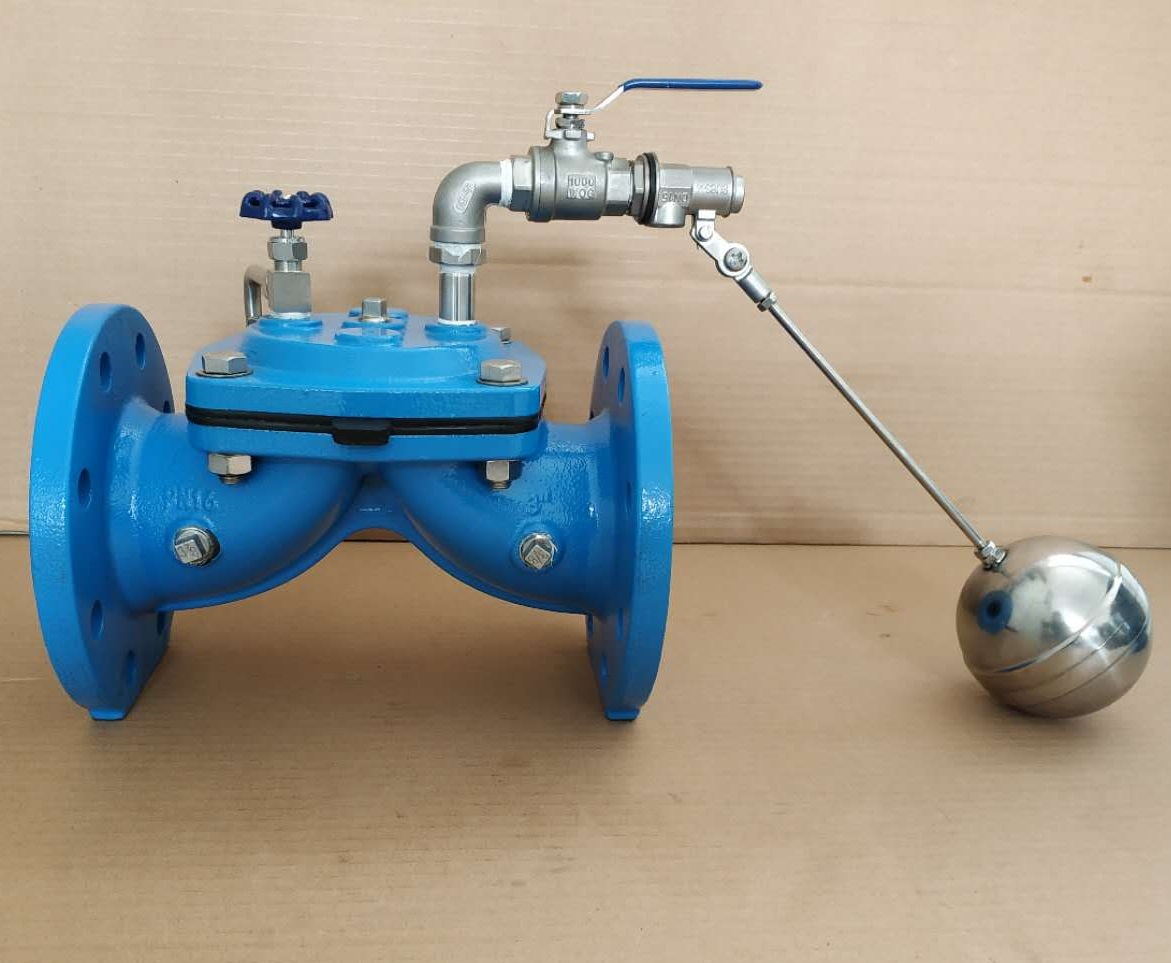

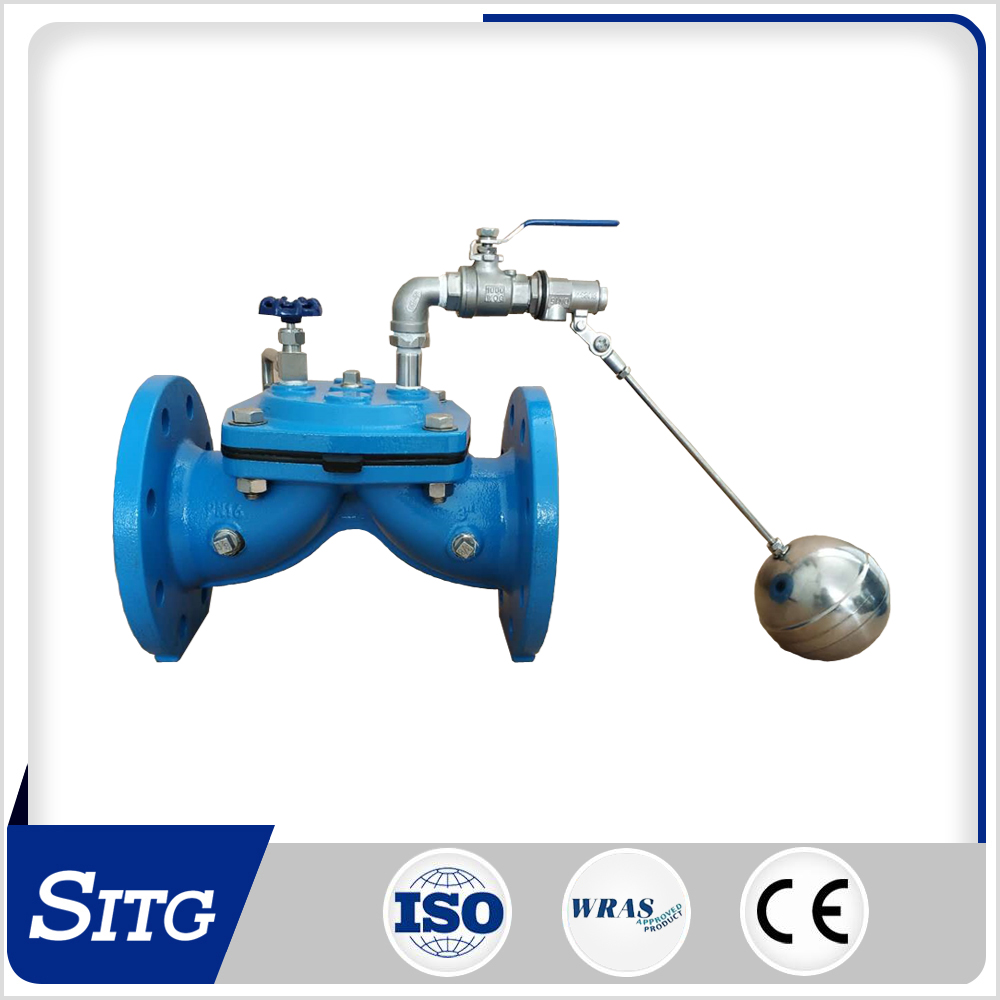

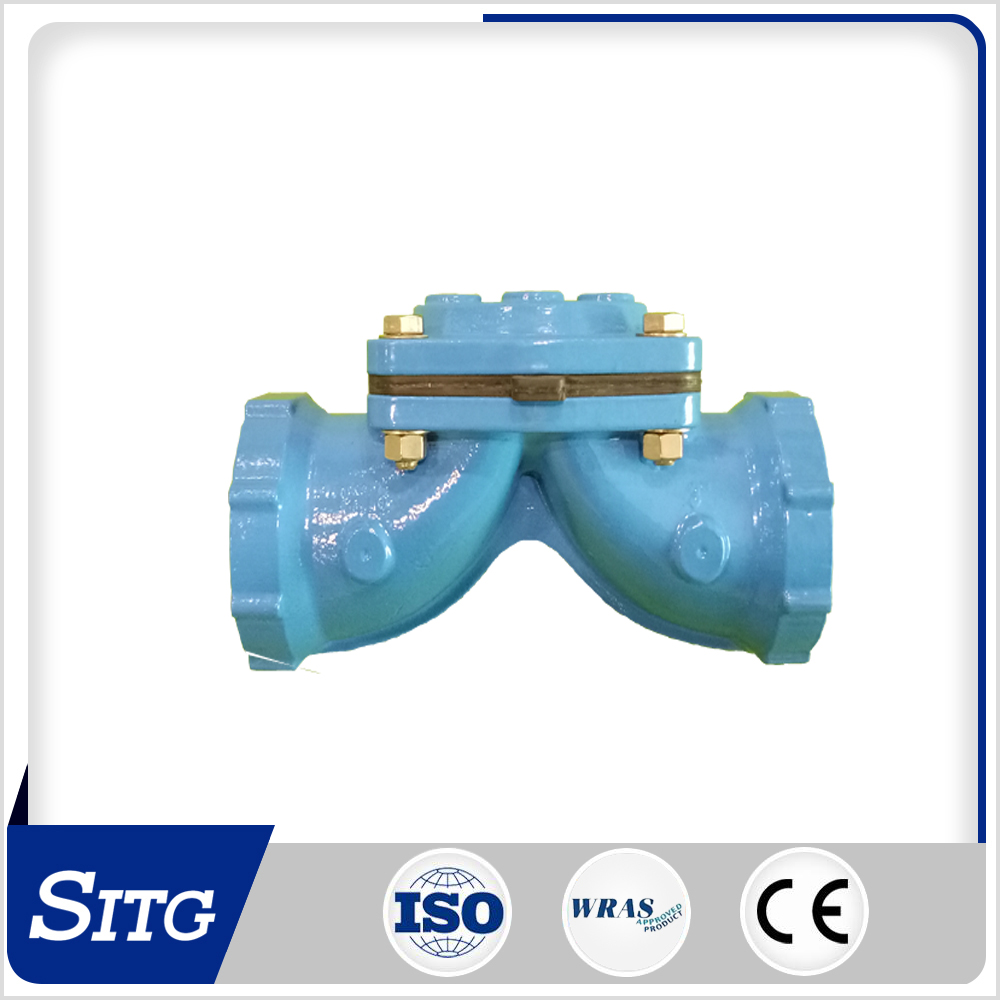

100X Diaphragm remote float control valve

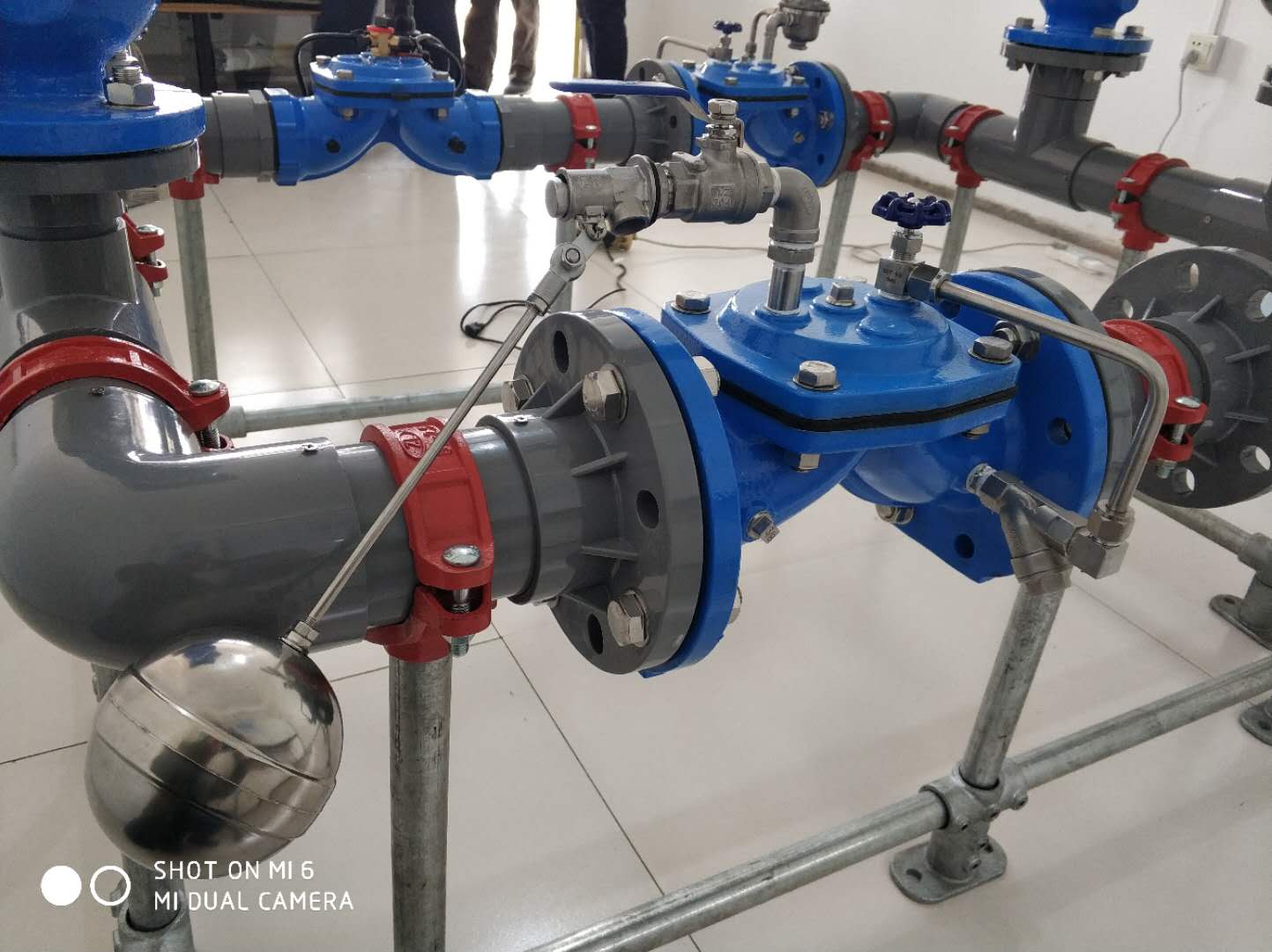

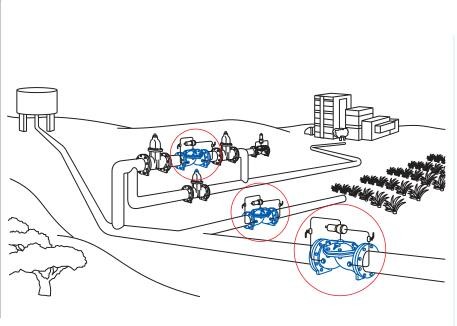

The 100X diaphragm remote float control valve is normally installed at the water inlet of a pool or elevated water tower in
industrial and mining enterprises or civil buildings.

When the water level reaches the set height, the main valve is controlled by the floating ball pilot valve to close the water inlet and stop water supply; when the water level falls, the main valve is controlled by the floating ball pilot valve to open the water inlet, to fill the pool to realize automatic water level control.

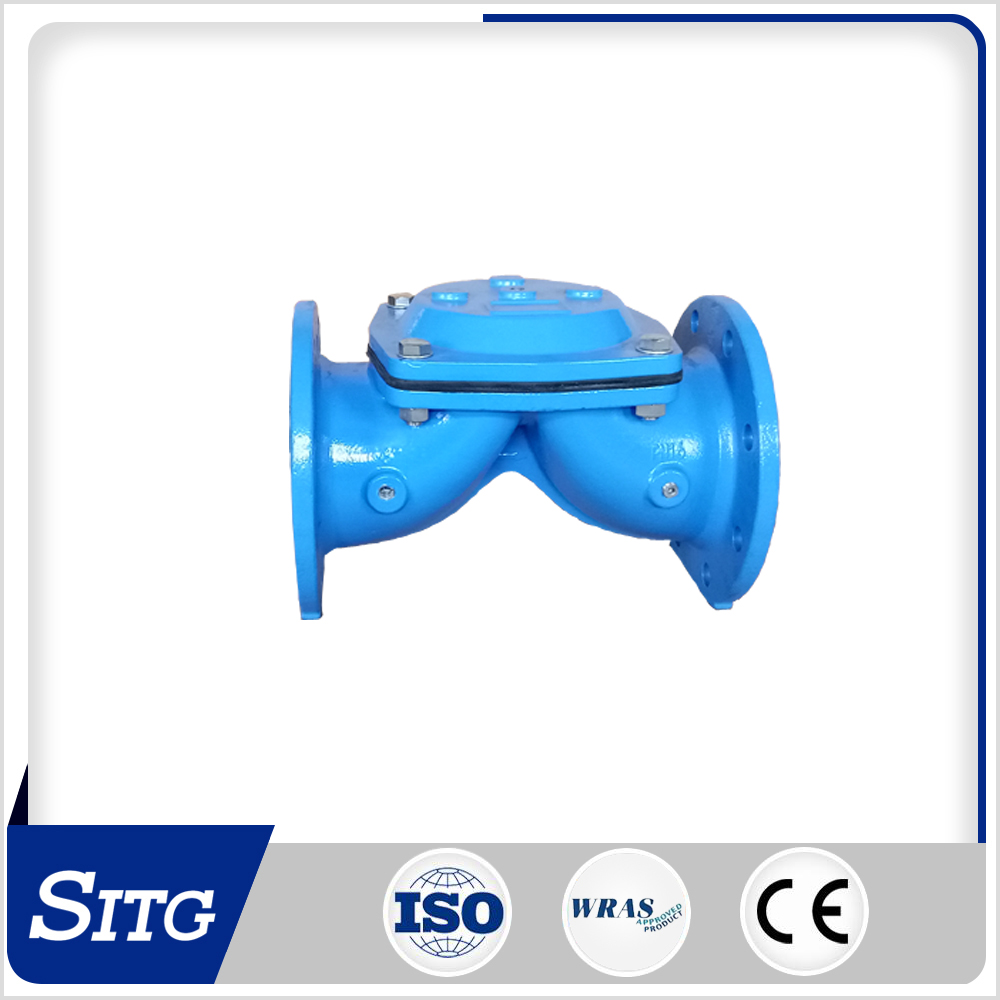

The 100X diaphragm remote float control valve is composed of a diaphragm main valve, a floating ball pilot valve and pipe
connection system.

The main valve uses diaphragm structure. The connection system is composed of float valve, ball valve and connection pipe. Light weight, simple structure and cost-effective.

Materials: Body & Cover: Ductile iron / Stainless steel

Diaphragm: Reinforced EPDM / NBR

Spring: SS304

Size: DN50-DN200

Connection: Flange / Threaded are all available

Pressure: PN10/16. BS10 D/E, ANSI CLASS 150 JIS 10/16K

Special specs.is available upon request.

PORT SIZE	DN50-DN200
BODY MATERIAL	Ductile Iron/SS/Plastic
Diaphragm Material	EPDM/NBR
Bonnet Material	Ductile Iron/SS/Plastic
Pilot Valve	SS304
Spring	SS304
Connection Tube	SS/Plastic
Operation	Automatic Control by Water Level
Medium	Water

Packing&Shipping

Packing Details : In Carton + Pallet or In Plywood Case
Delivery Details : 30 days after order confirmation

Company Introduction

Suntex Metals Co., Ltd.,a branch of Suntex Import & Export trading Co.,Ltd., is a leading producer of valves and pipe fittings for water,( including DRINKING water supply),gas and oil fields. Founded by more than 15-year experienced experts on water line products, we own a full equiped factory include epoxy coating line and a lost wax foundry.

Our products include EN545 ductile iron pipe fittings, air valves,service valves,gate valves, butterfly valves, flange adaptors, couplings, repair clamps, saddles, stainless steel valve/pump parts and stainless steel decorative products such as handrail fittings and glass facade elements.We invite you to browse our web sites for more information about our products and services.Please be noted that other sizes,dimensions and specifications for our products are available upon request.

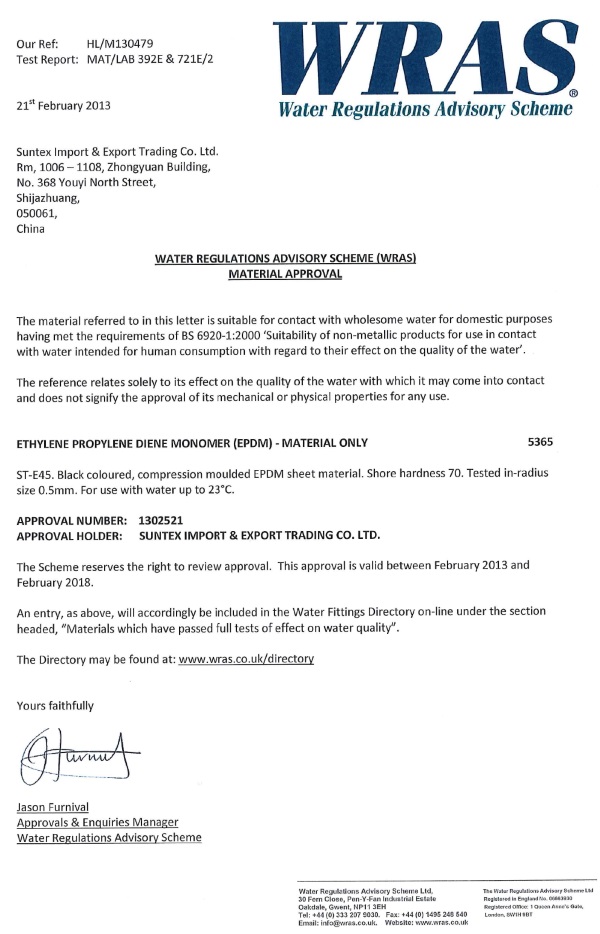

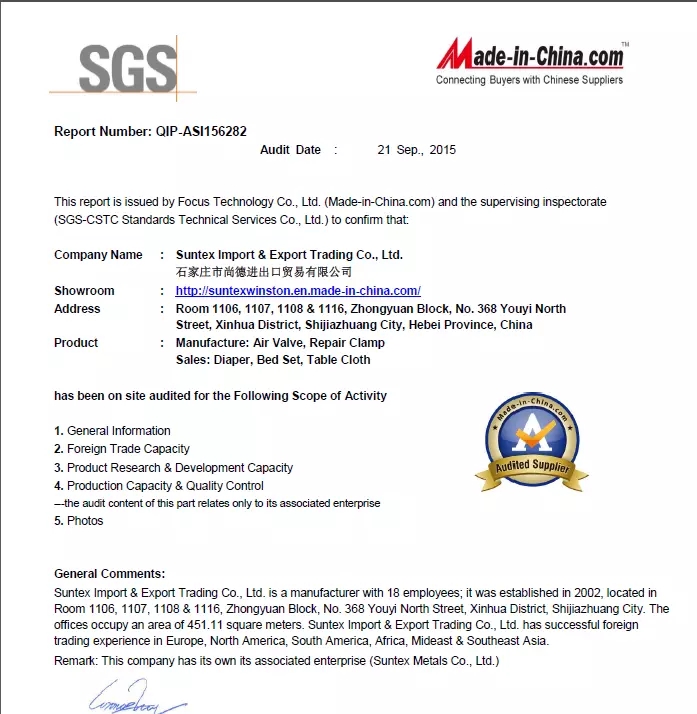

Certifications

Customer Photos

FAQ

Q: ARE YOU TRADING COMPANY OR MANUFACTURER ?

A: We are factory.

Q: HOW LONG IS YOUR DELIVERY TIME?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.

Q: WHAT IS YOUR TERMS OF PAYMENT ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
