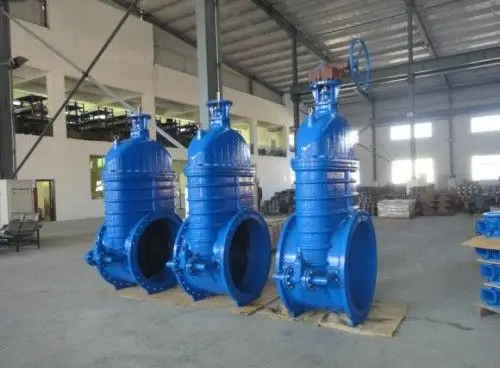

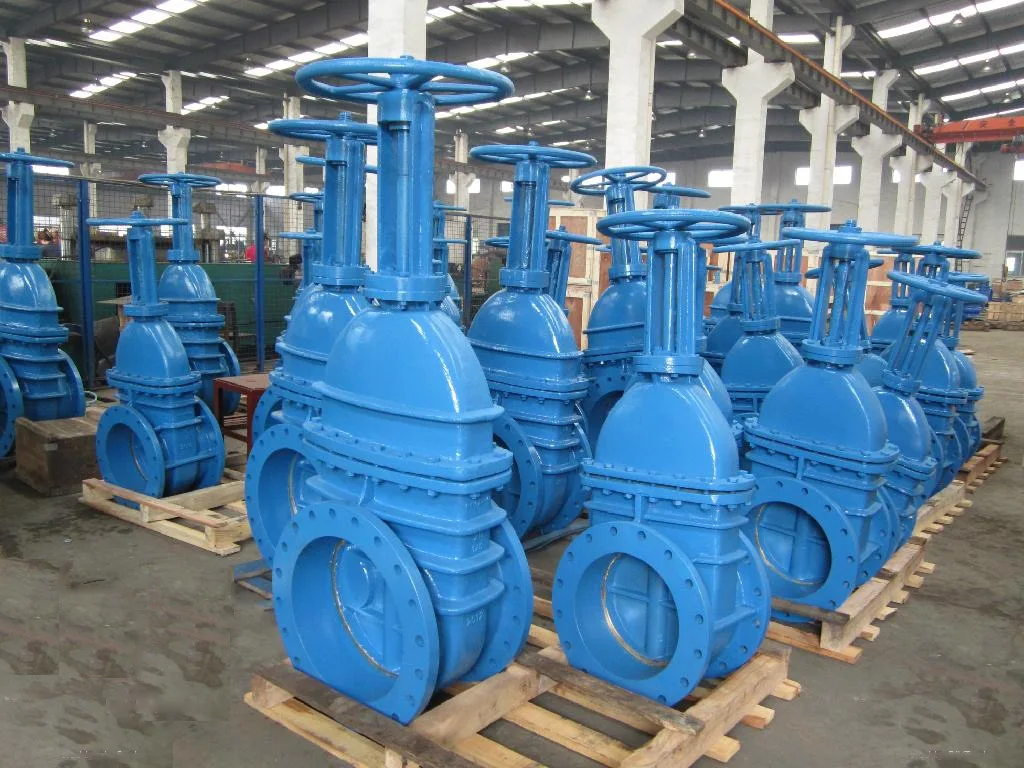

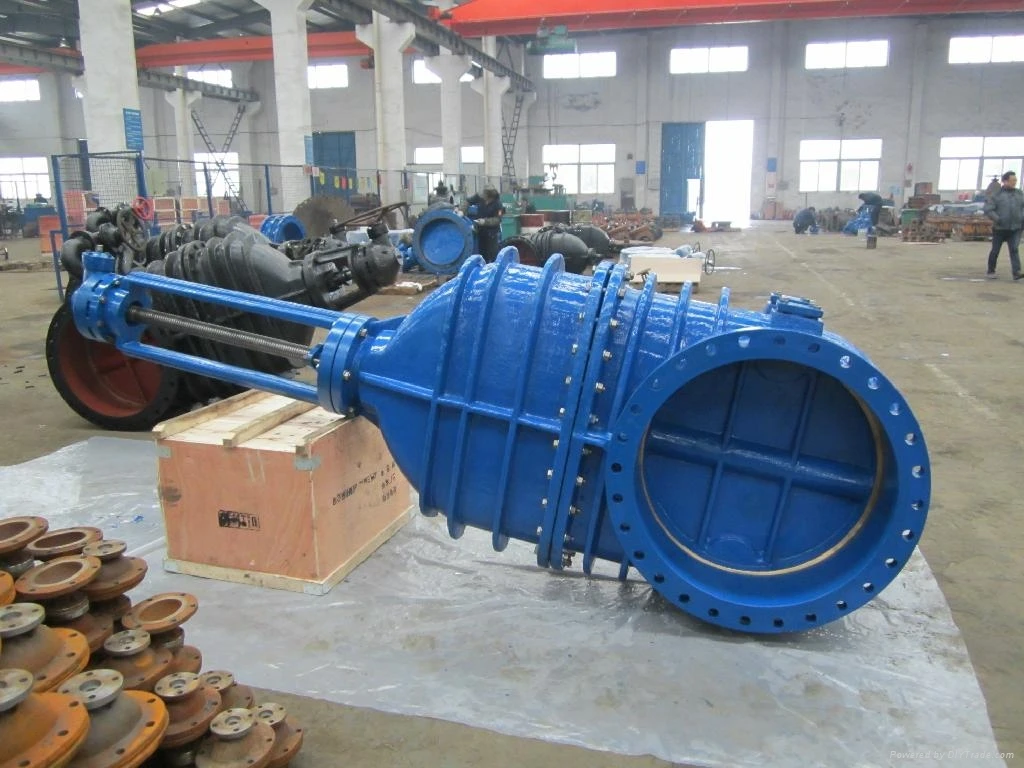

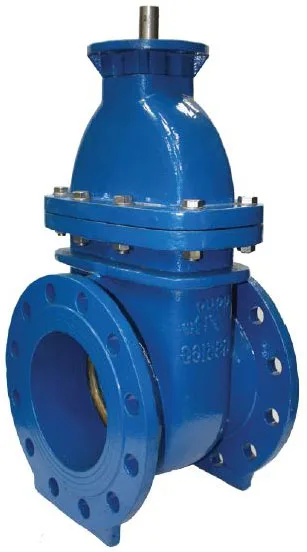

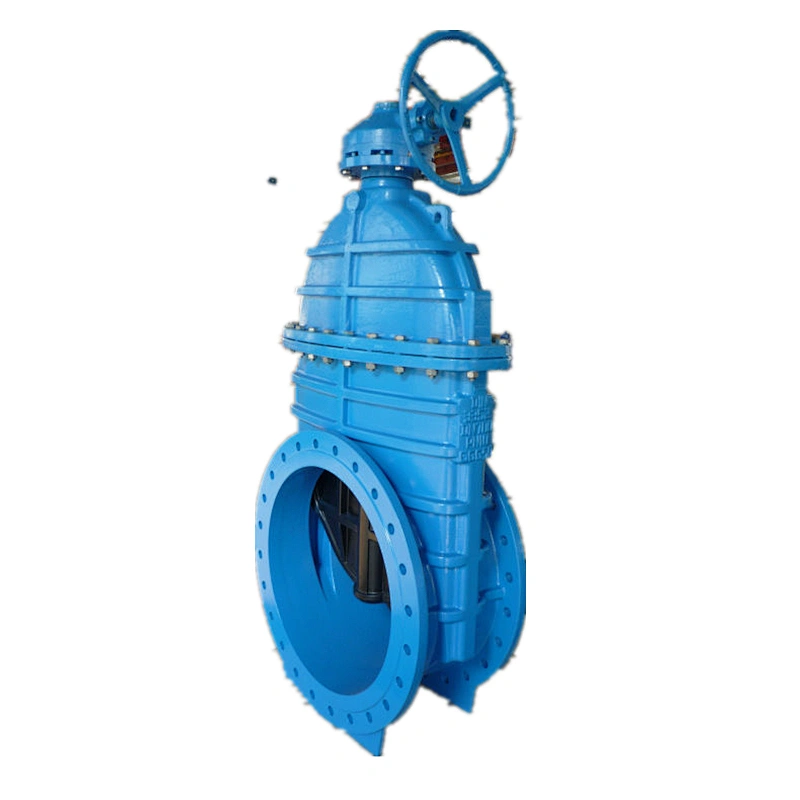

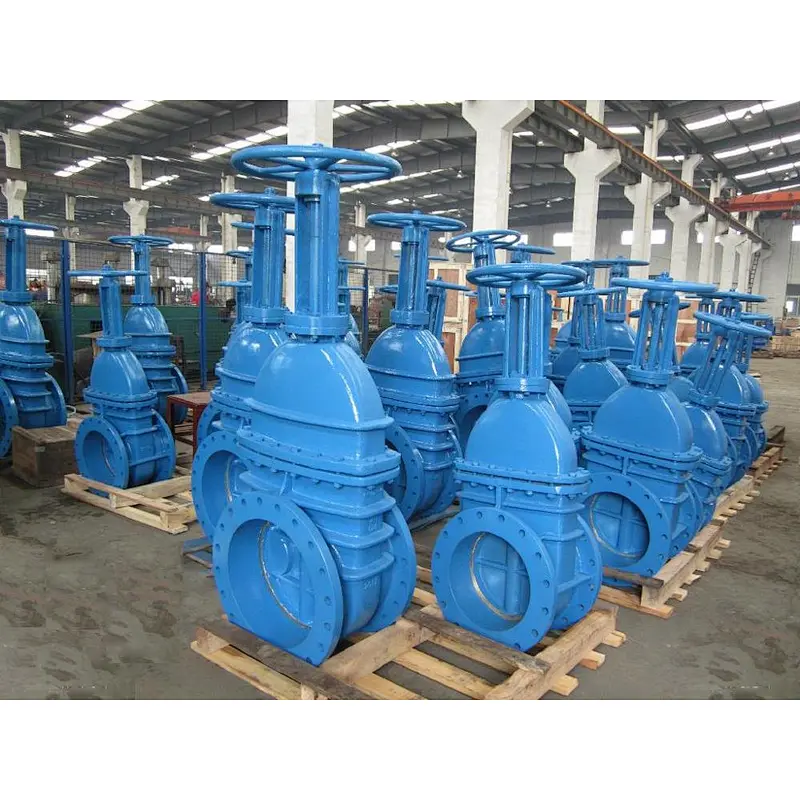

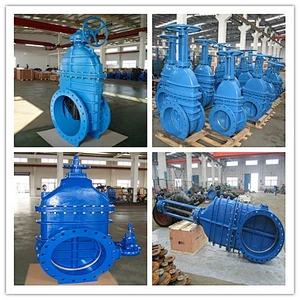

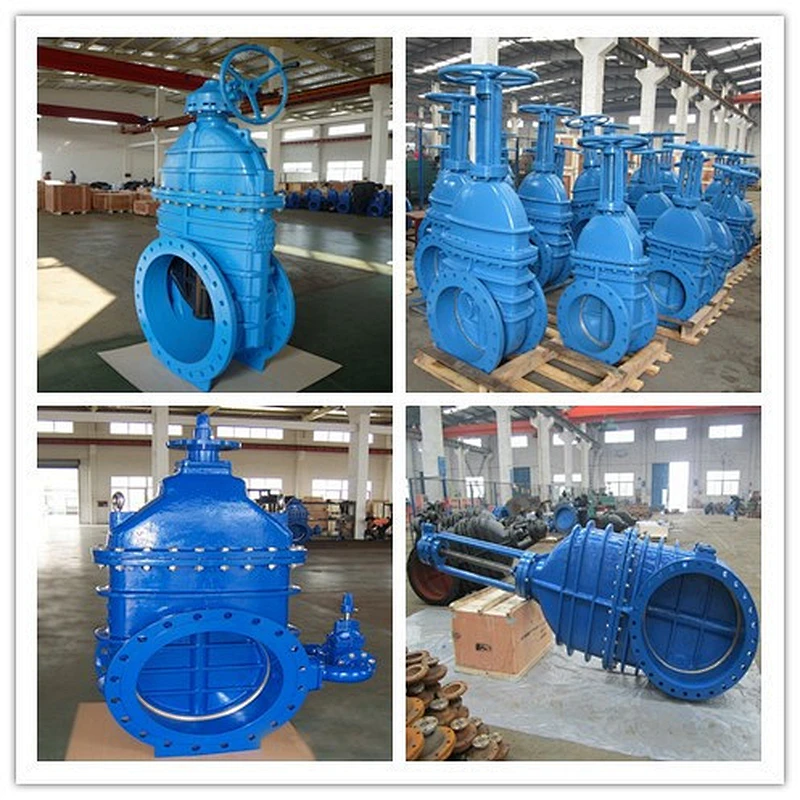

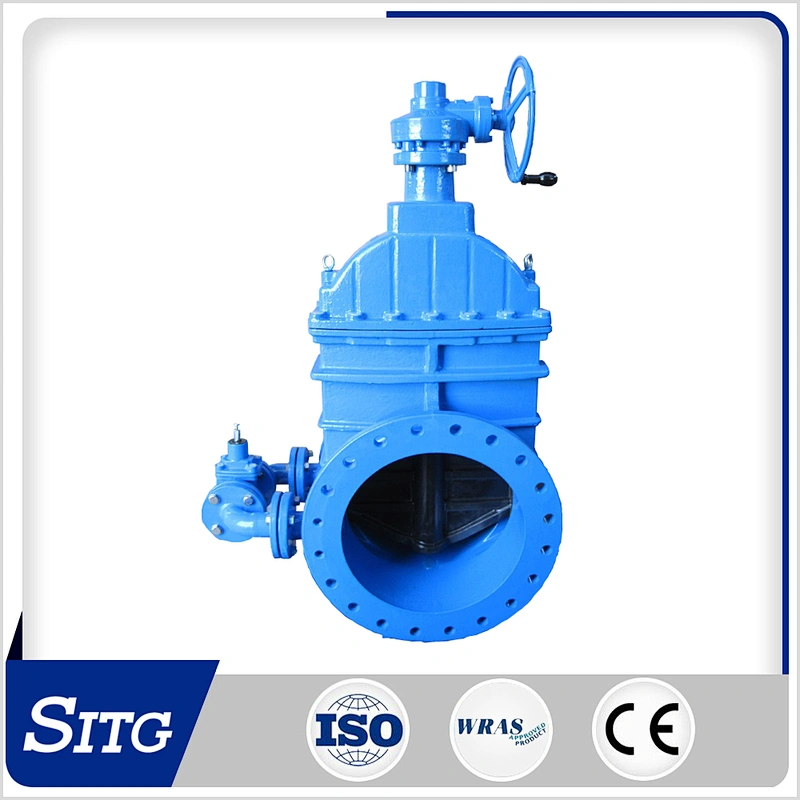

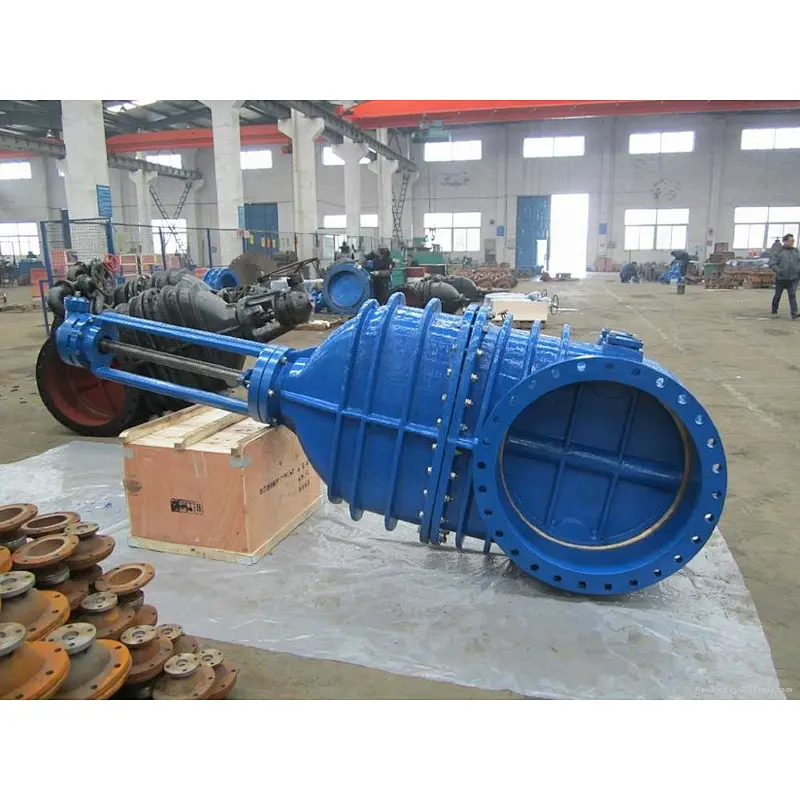

Large Diameter Rubber wedge Gate Valve

Model NO.: STA-02
Price:: USD 25.00-3000.00 / sets
Delivery: FOB
Minimum order quantity: 50 sets
Supply Ability: 500 sets / Month
Country of Origin: Tianjin
Stock Time: 45 Days

Quantity:

Product Description
Basic Information

Type:Gate Valves
Place of Origin:CN
Application:General
Temperature of Media:Low Temperature
Power:Electric
Media:Water
Structure:Gate
Brand Name:Suntex
Model Number:Gate Valve
Port Size:DN350-DN1600

Product Description

Cast iron large size Gate Valve

Body: Cast Iron/Ductile Iron

Disc: Ductile Iron/Stainless Steel

Bonnet: Cast Iron/Ductil Iron

Stem: Stainless Steel/Brass

O-ring: NBR

Nut: Brass/Bronze

Seat: Brass/Bronze

Operation: Handwheel/Gear Box/Electric/Pneumatic

2.Standards:

Face to Face is according to DIN F4/F5/ANSI/BS/JIS/SABS

Flange Drilled is according to DIN2532/2533/2501/EN1092/ASME B16.1/16.5

3.Test:

Working Pressure PN10 PN16

Shell Pressure 1.5Mpa 2.4Mpa

Seat Pressure 1.1Mpa 1.76Mpa

4.Dimensins:

Unit:mm

DN	F4	F5	BS5163/BS5150	ANSI	SABS
DN350	290	550	381	381	381
DN400	310	600	406	406	406
DN450	330	650	432	432	432
DN500	350	700	457	457	457
DN600	390	800	508	508	508
DN700	430	900	610	610	610
DN800	470	1000	660	660	660
DN900	510	1100	711	711	711
DN1000	550	1200	811	811	811
DN1200	630	1400	1015	1015	1015
DN1400	710	--	--	--	--
DN1600	790	--	--	--	--

APPLICATION:

• Gas distribution pipelines

• Crude oil pipelines

• Hot water conduits

• Potable water distribution

• Sewage conduits

• Civil engineering and structural purposes

Body Material	Ductile Iron
Disc Material	Ductile Iron/Stainless Steel
Bonnet	Ductile Iron
Stem	Stainless Steel / Brass
O-ring	NBR
Nut	Brass / Bronze
Seat	Brass / Bronze
