- Type:Pressure Regulators
- Type:Bypass Control Valves
- Type:Drain Valves
- Type:Water Regulating Valves
- Type:Flush Valves
- Place of Origin:CN;HEB
- Application:General
- Temperature of Media:Normal Temperature
- Power:Hydraulic
- Media:Water
- Structure:Diaphragm
- Brand Name:sitg
- Model Number:STV-BW01
- Port Size:2"-4"
- long working life:stable serve condition
- low pressure start:anti-rust
Product Description

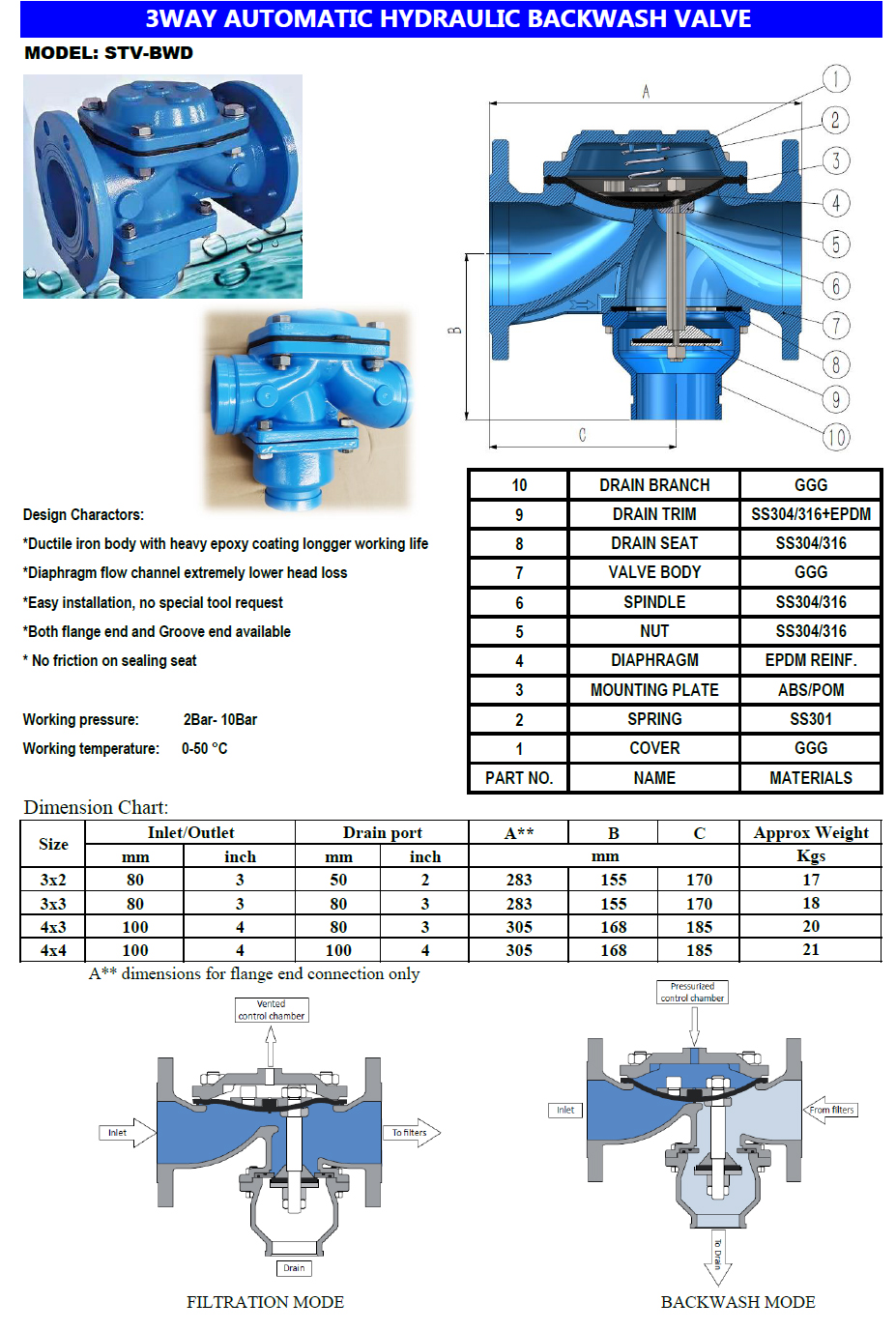

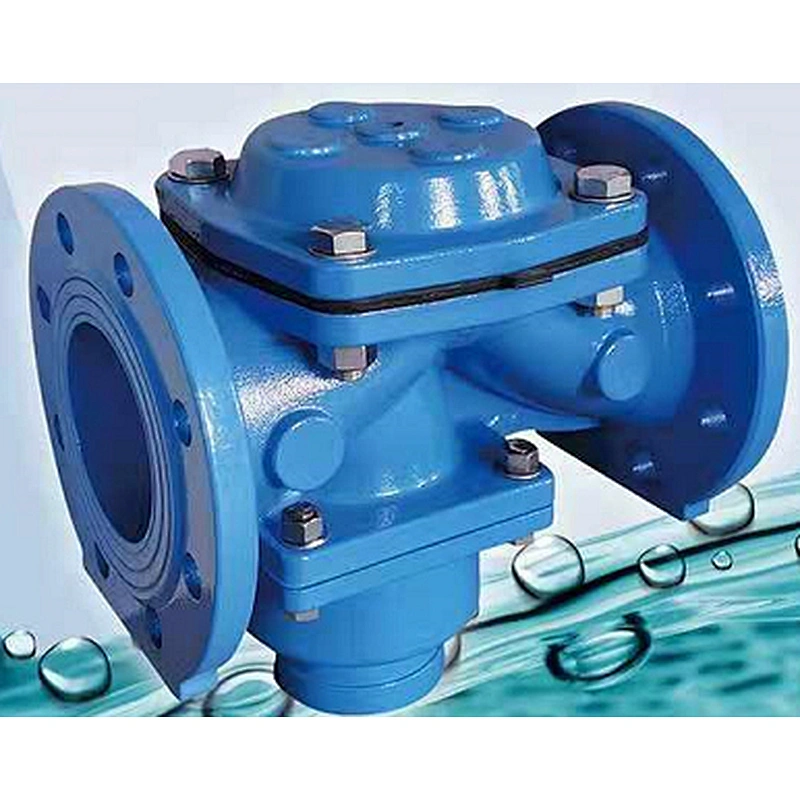

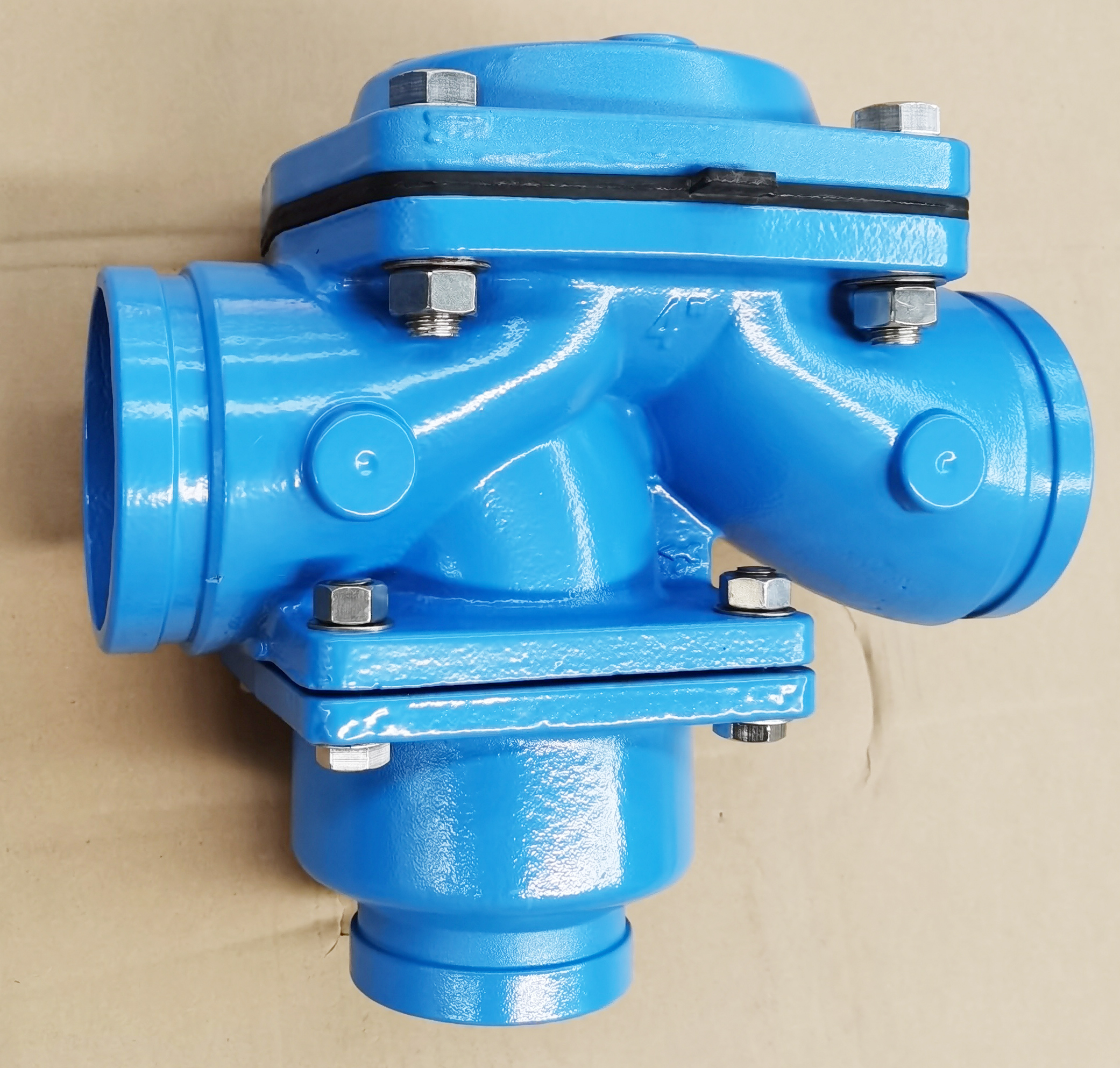

Backwash /Flush valve for sand media filter
Material: Body: DI / Plastic
Actuator: DI / Plastic
Port size available:
| model | 2"x2" | 3"x2" | 3"x3" | 4"x3" | 4"x4" |
| in/out port | 2" | 3" | 3" | 4" | 4" |
| drain port | 2" | 2" | 3" | 3" | 4" |
End connection: grooved end
threaded end (BSP/NPT)
flanged end
Working pressure: 2-10Bar
Flush Acting pressure: 2 bar
Special specs. available upon requests
Packaging & Shipping
Carton + Pallet/plywood case
