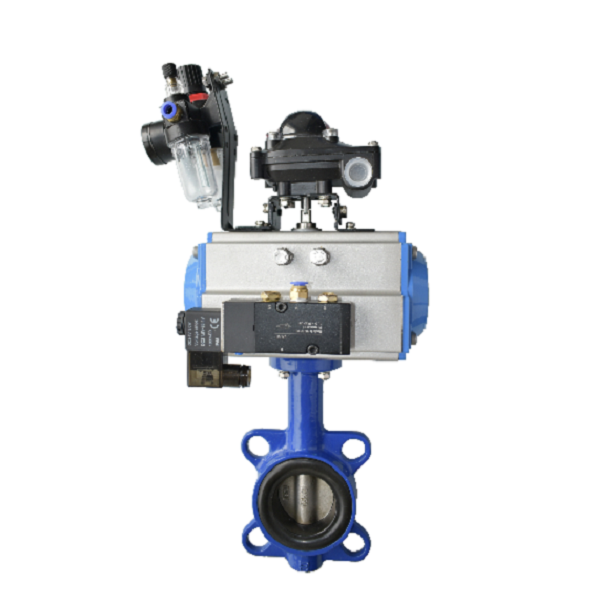

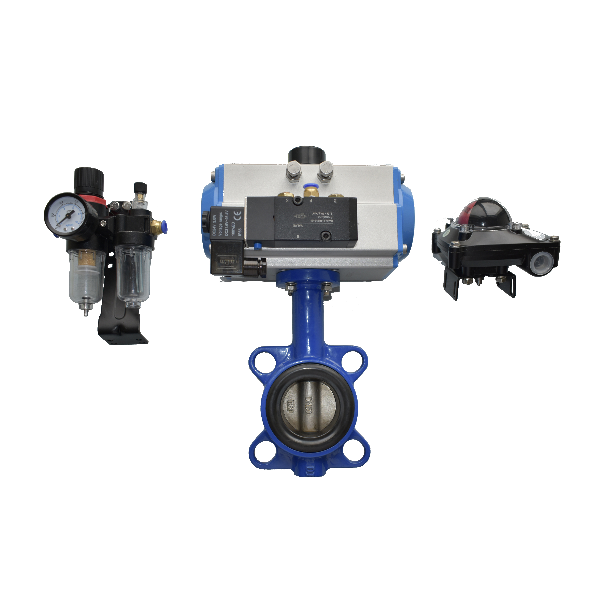

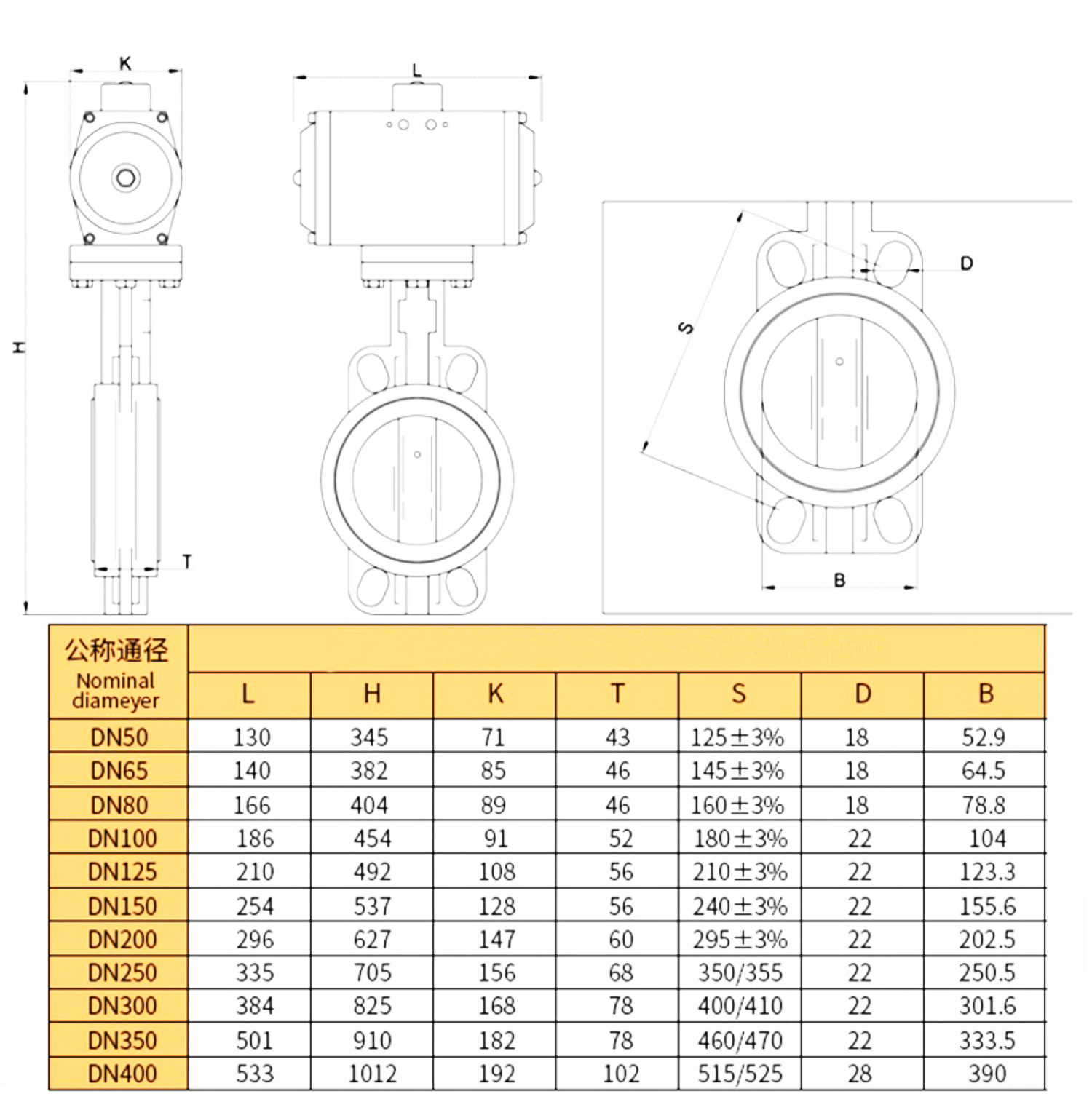

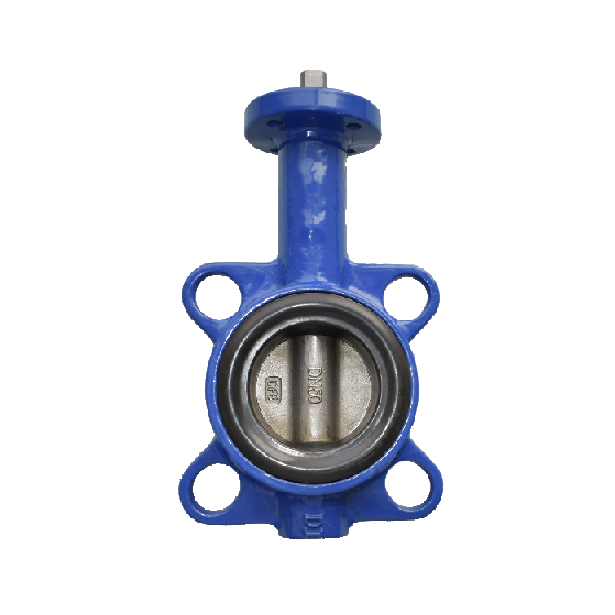

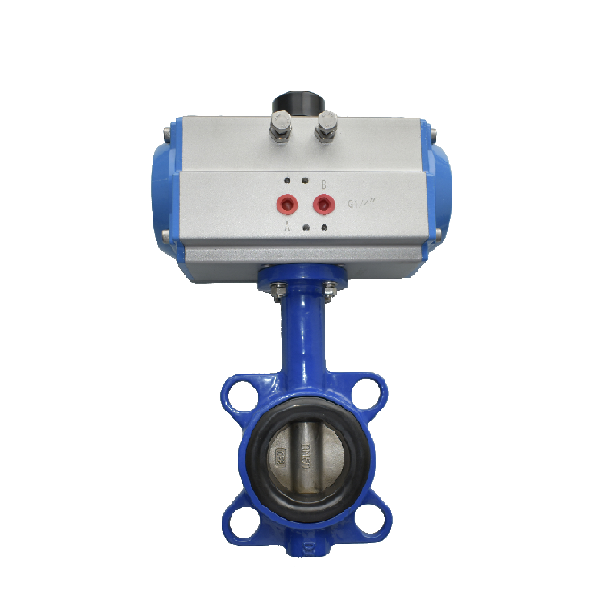

Pneumatic Actuated Wafer Type Butterfly Valve

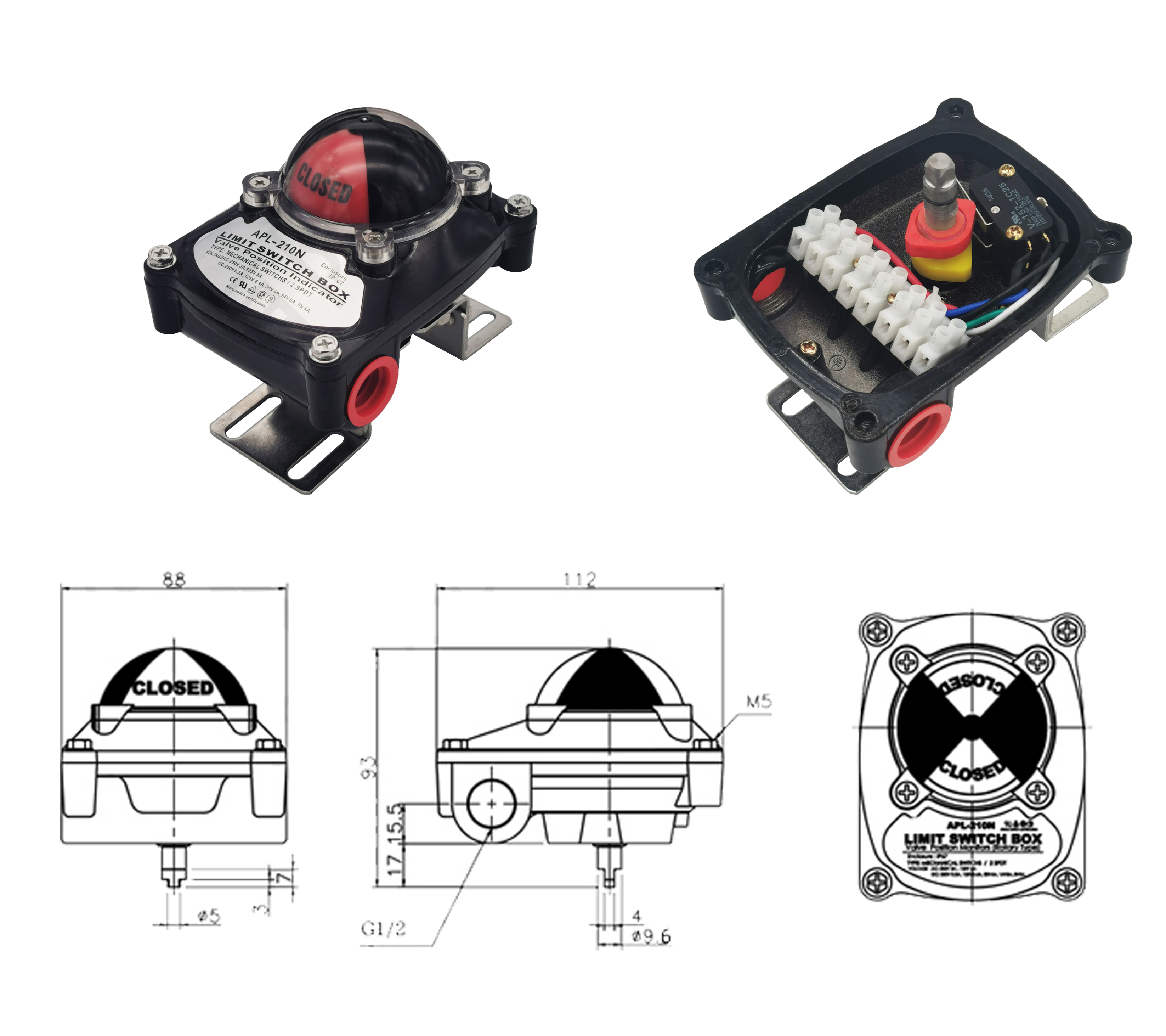

     Limit Switch Box

1. Weather proof IP67/NEMA4&4X(Standard)/IP68(Option)
2. Captive cover bolts
3. Terminal strips:8 points
4. Dual cable entries:2*1/2NPT(Standard)/M20,PG13.5,PF1/2",PT1/2"(Option)
5. Solid and compact design

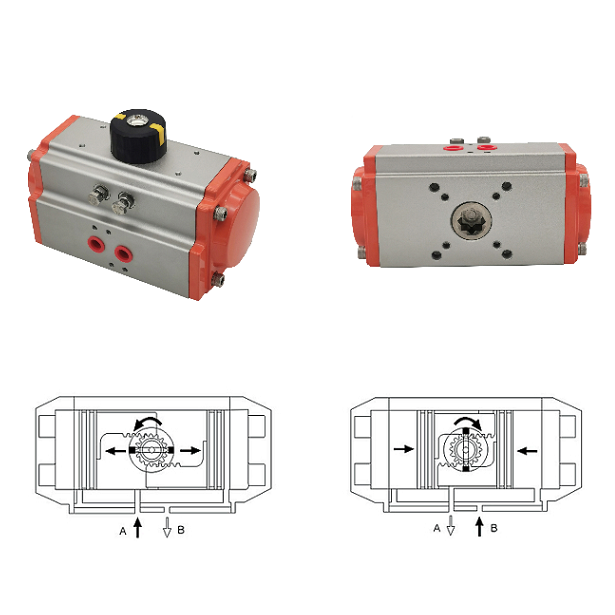

     Pneumatic Actuator

1. Working pressure:2~8Bar
2. Working temperature:-20°C~80°C
3. Rotary angle:0~90°
4. Working medium:Compressed air
5. Single acting(spring return)and double acting

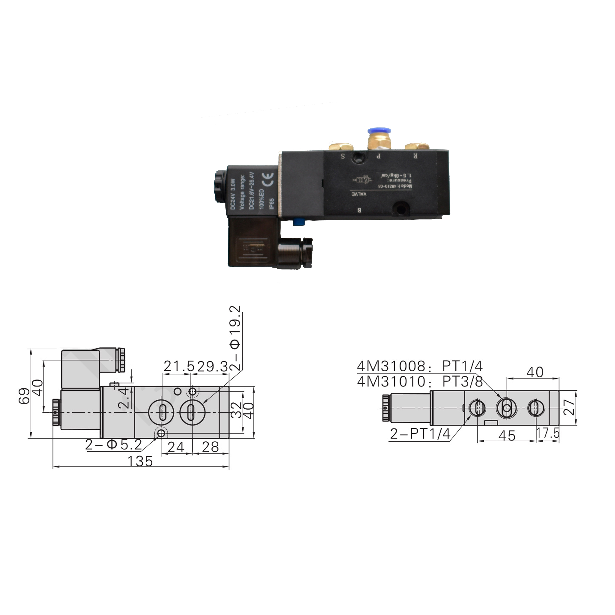

    Solenoid Valve

1. Two-position Five-way
2. Action Frequency:4 cycle/second
3. Protection class:IP65
4. Motion pattern:Internal pilot type

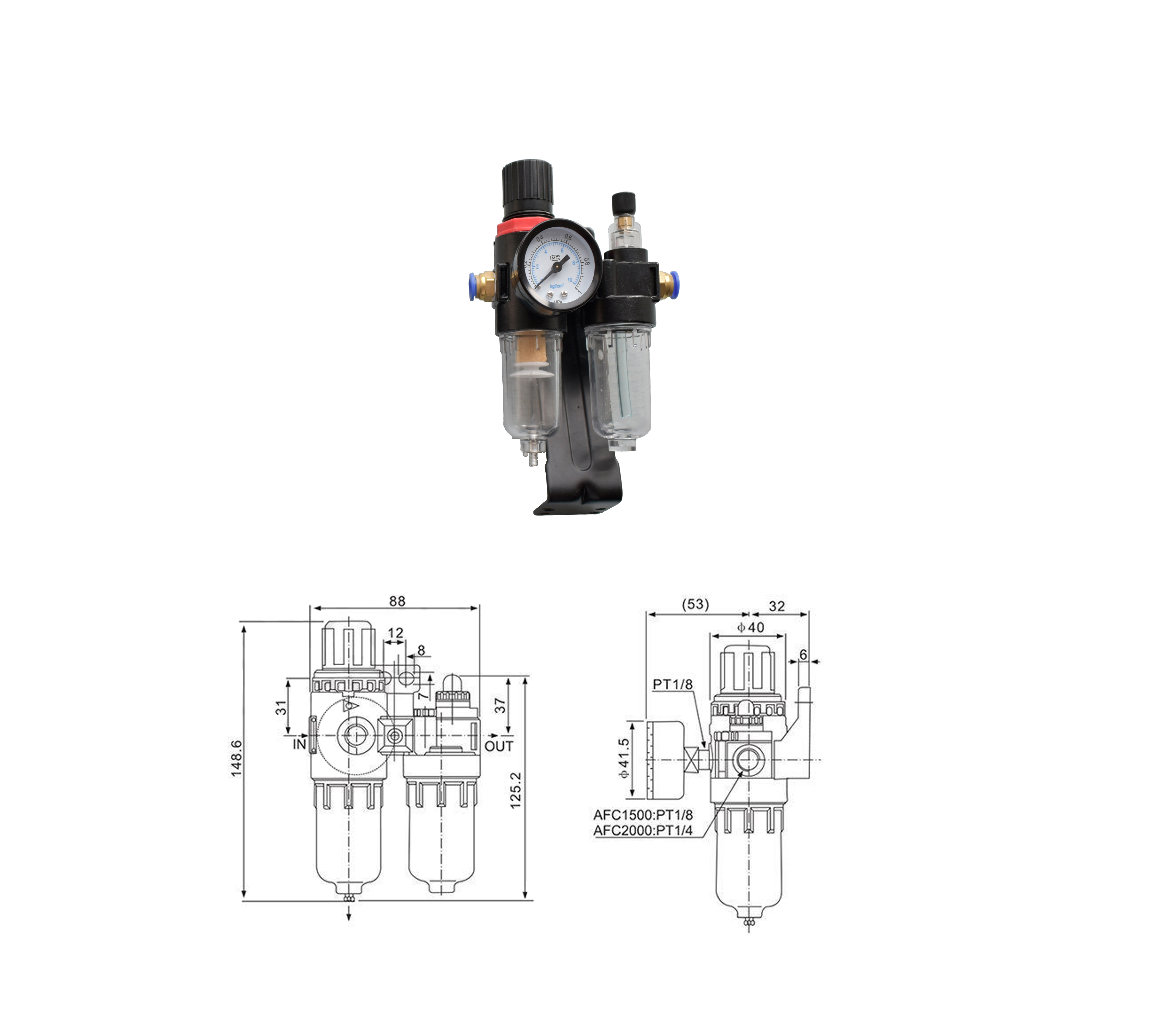

     F.R.L

1. Highest working pressure:10 Bar
2. Operating temperature range:5°C~60°C
3. Pressure range:0.6~8.5 Bar
