Вафельный двухдисковый обратный клапан

Модель: STV-C01
Минимальное количество для заказа: 100 задавать
Емкость поставки: 2000 задавать / месяц

количество:

Описание продукта

Type:Metal Check Valves
Place of Origin:CN;HEB
Application:General
Temperature of Media:Low Temperature
Power:Hydraulic
Media:Water
Structure:Check
Brand Name:Suntex
Model Number:STV-C01
Port Size:DN50-DN600
Application:Water Pipe System
Certificate:ISO9001
Packing:Plywood Case
Specification:DN50-DN600
Working Pressure:PN10/16
Feature:Easily Assembled
Body material:Ductile Iron
Function:Control Flow Water

Product Description

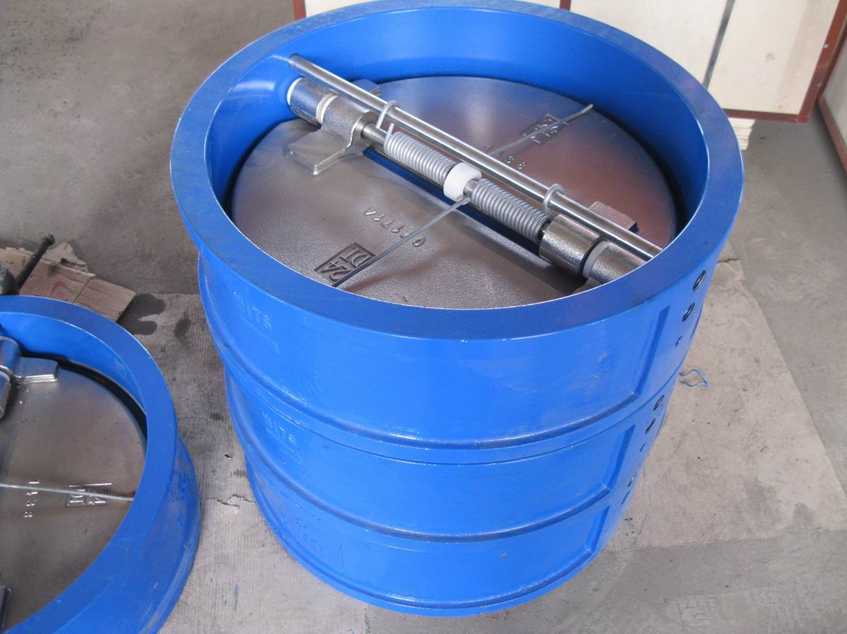

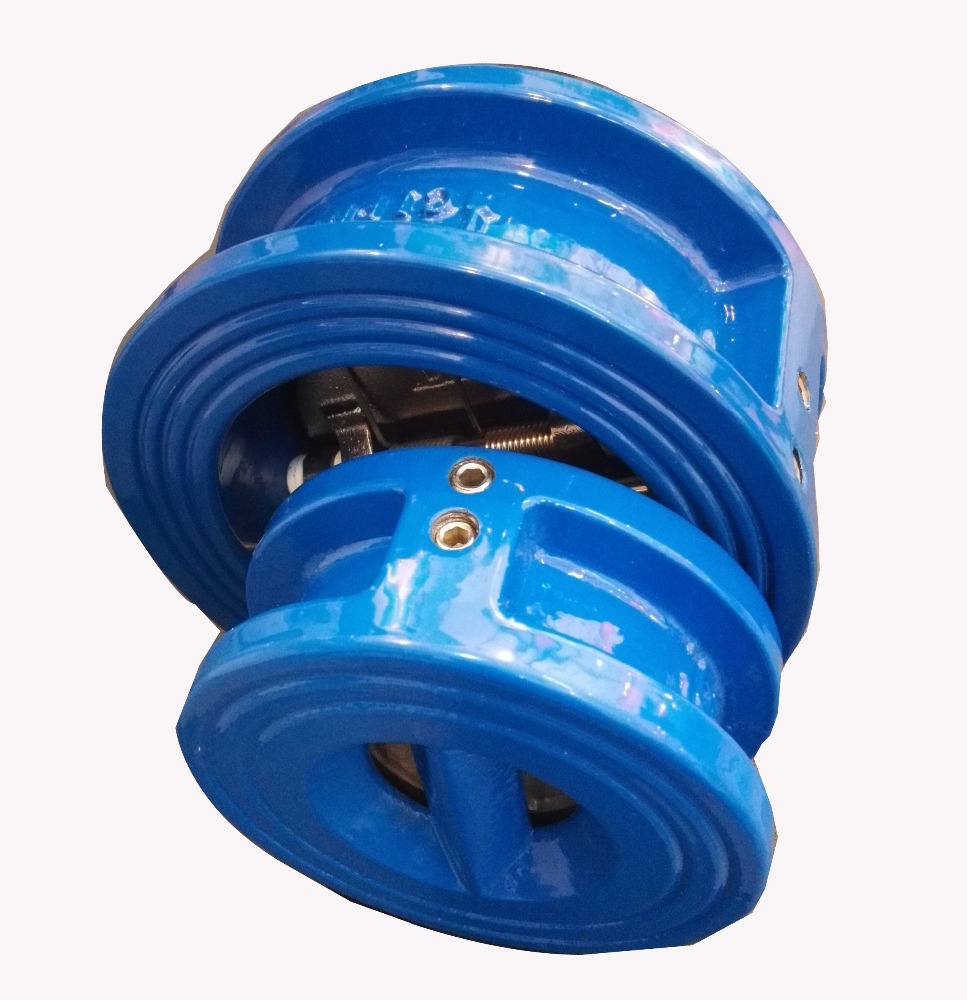

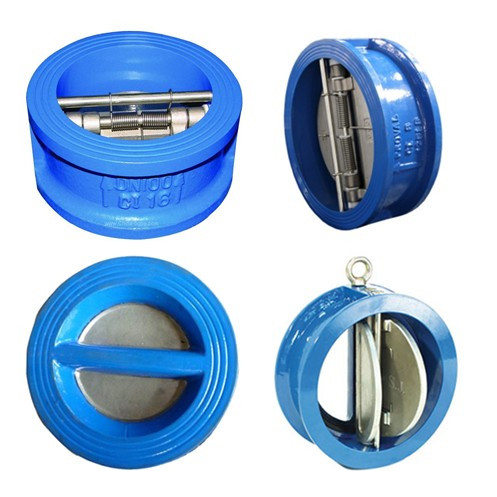

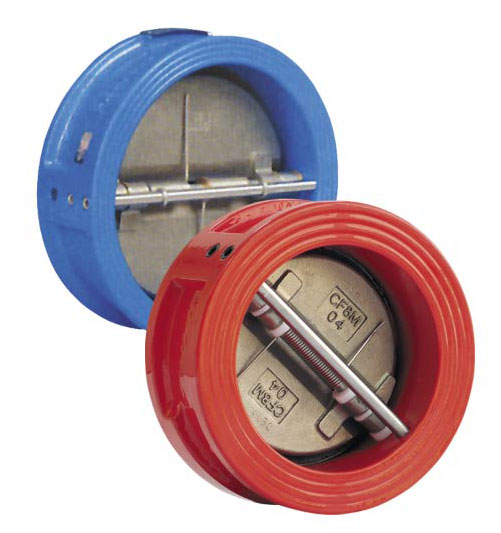

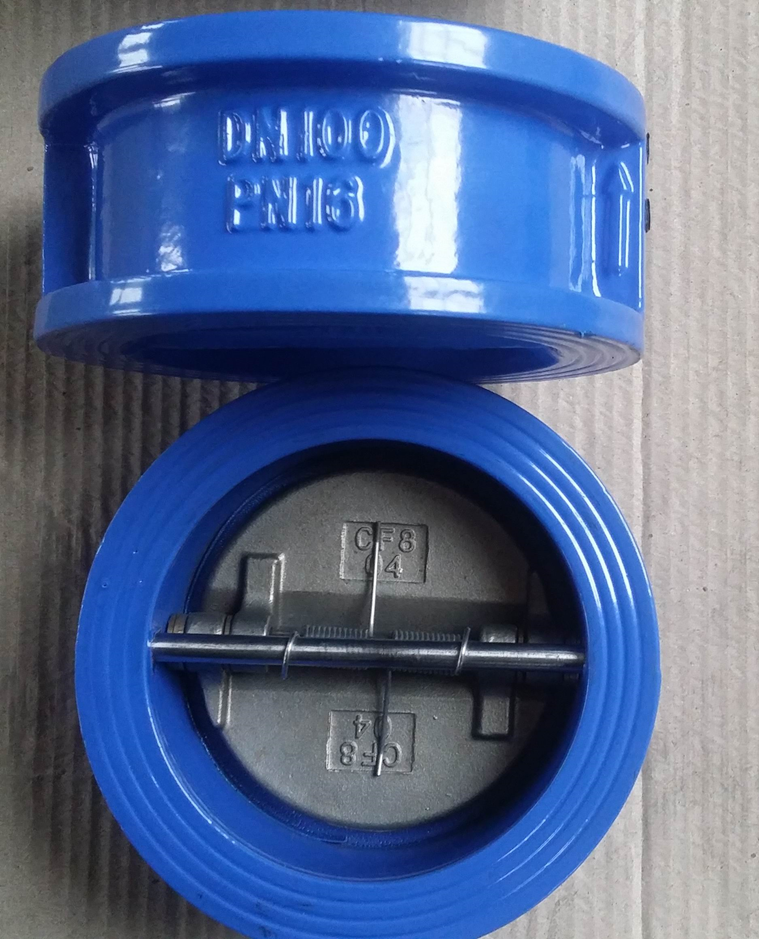

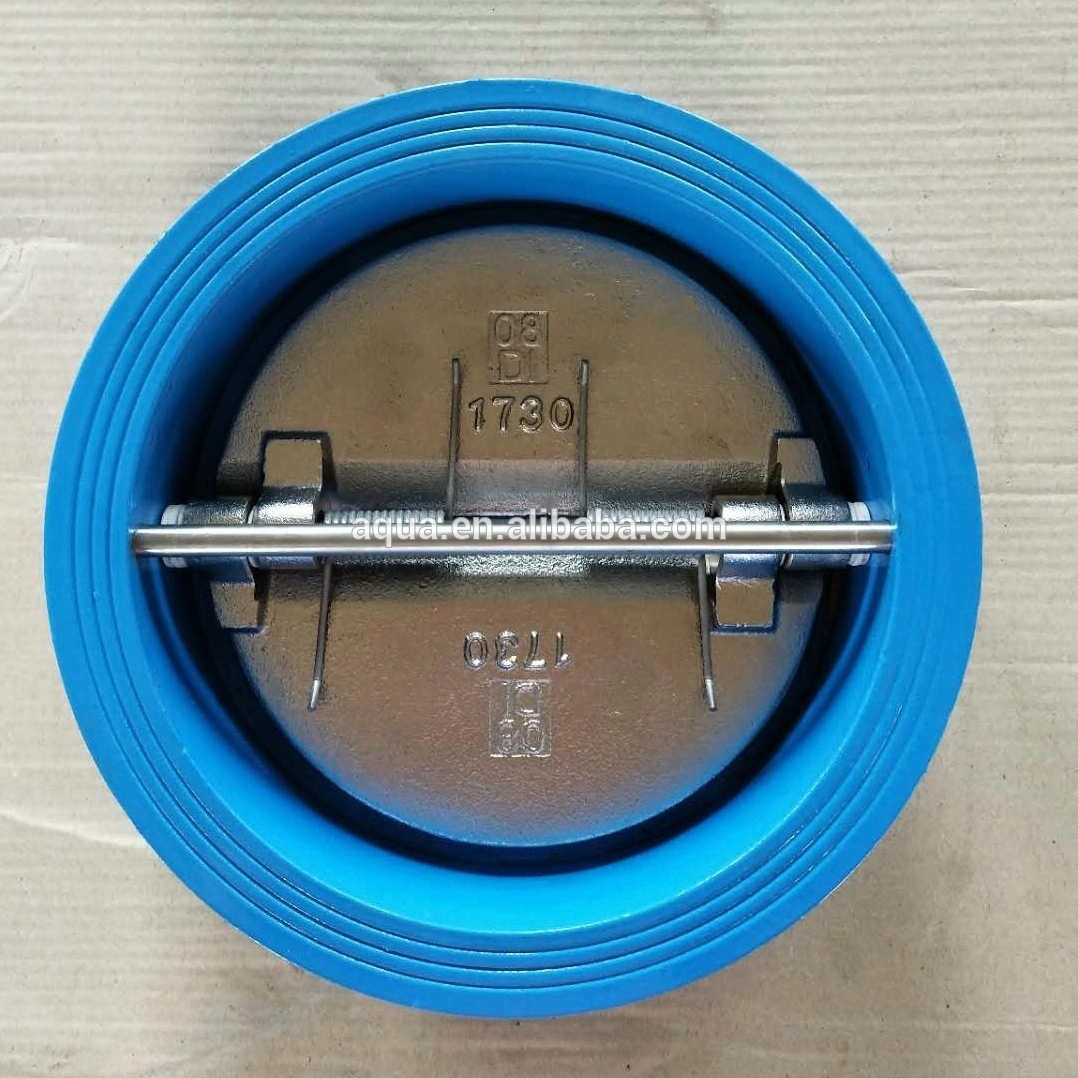

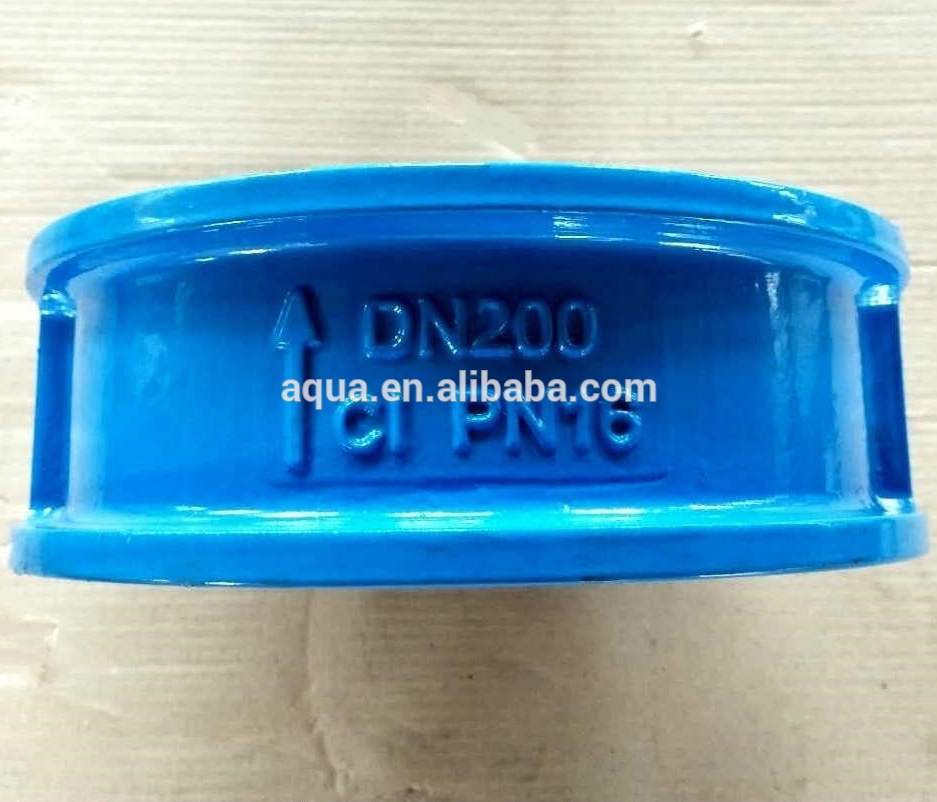

Wafer dual disc check valve

Size range: DN50 - DN600

Characteristics:

1. Short face to face dimension(only 1/4~1/8 of conventional flange check valve);

2. Small volume, light weight (1/4~1/20 of conventional flange check valve);

3. The disc closes rapidly,and has small water hammer pressure;

4. Can be used for horizontal pipe lines and vertical pipe lines. 4. Convenient utilization;

5. Free channel and small fluid resistance;

6. Excellent sealing;

7. Short stroke of valve disc and small impact force when closing valve;

8. Compact structure, beautiful modeling;

9. Long service life and reliability

Body Material	Ductile Iron
Disc Material	Ductile Iron / Stainless Steel
Seat	NBR or EPDM or PTFE
Spring	SS304 or SS316
Pin	SS304 or SS316
Medium	Water, Steam, Gas, Oil
Working Tempreture	-20ºC-120ºC

Packing&Shipping

Packing Details : In Carton + Pallet or In Plywood Case
Delivery Details : 30 days after order confirmation

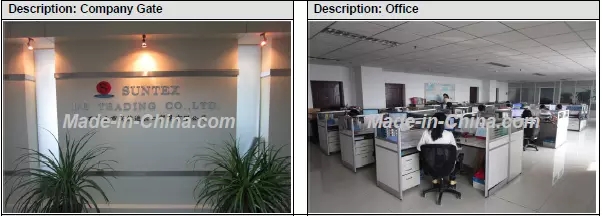

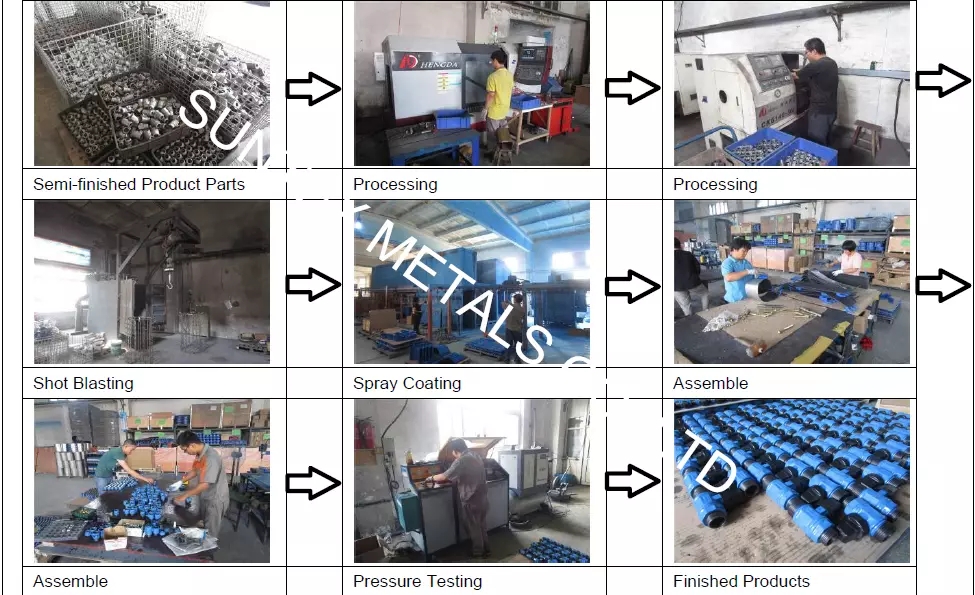

Company Introduction

Suntex Metals Co., Ltd.,a branch of Suntex Import & Export trading Co.,Ltd., is a leading producer of valves and pipe fittings for water,( including DRINKING water supply),gas and oil fields. Founded by more than 15-year experienced experts on water line products, we own a full equiped factory include epoxy coating line and a lost wax foundry.

Our products include EN545 ductile iron pipe fittings, air valves,service valves,gate valves, butterfly valves, flange adaptors, couplings, repair clamps, saddles, stainless steel valve/pump parts and stainless steel decorative products such as handrail fittings and glass facade elements.We invite you to browse our web sites for more information about our products and services.Please be noted that other sizes,dimensions and specifications for our products are available upon request.

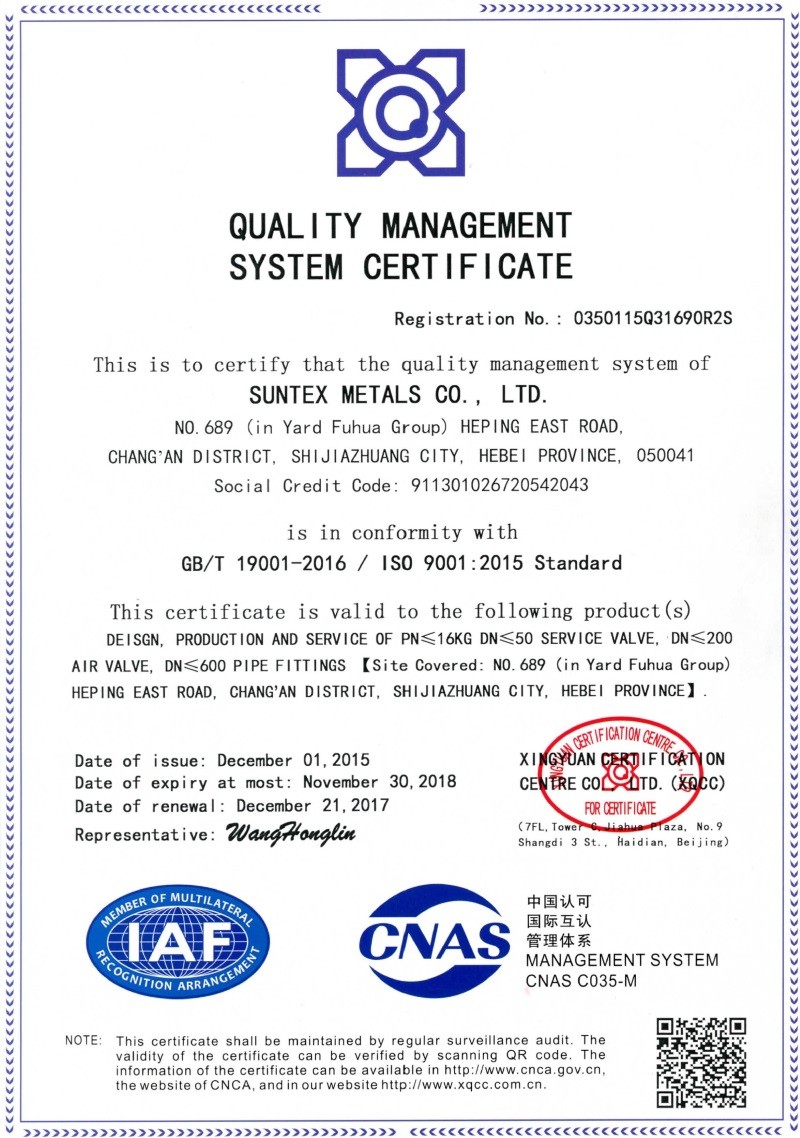

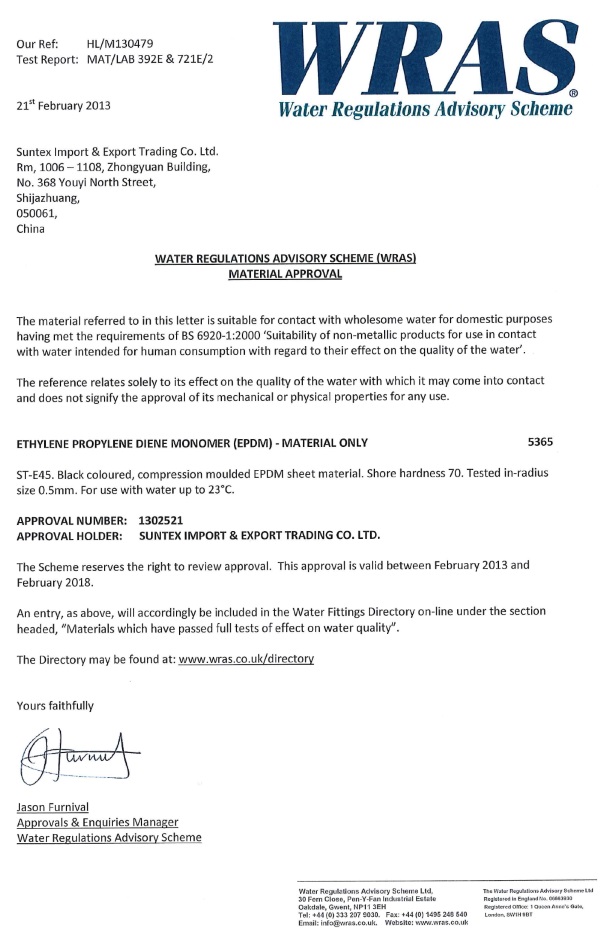

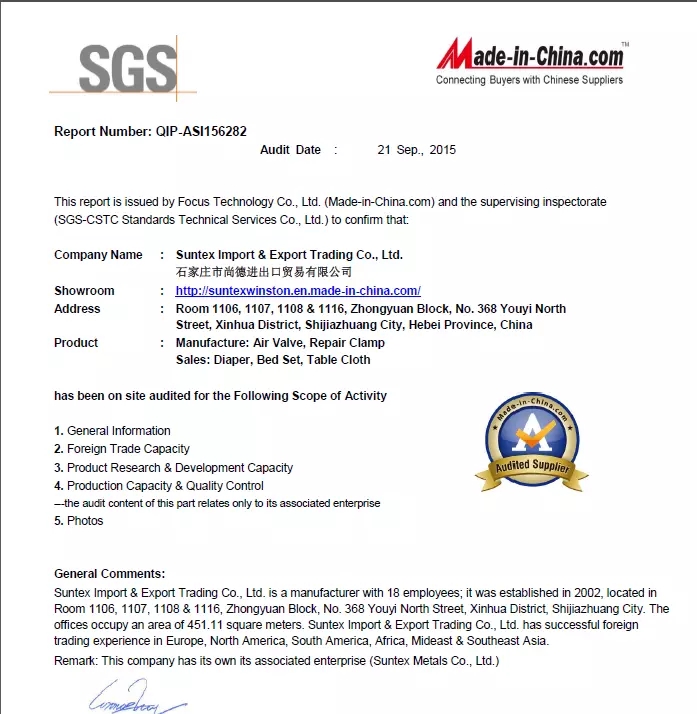

Certifications

Customer Photos

FAQ

Q: ARE YOU TRADING COMPANY OR MANUFACTURER ?

A: We are factory.

Q: HOW LONG IS YOUR DELIVERY TIME?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.

Q: WHAT IS YOUR TERMS OF PAYMENT ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
