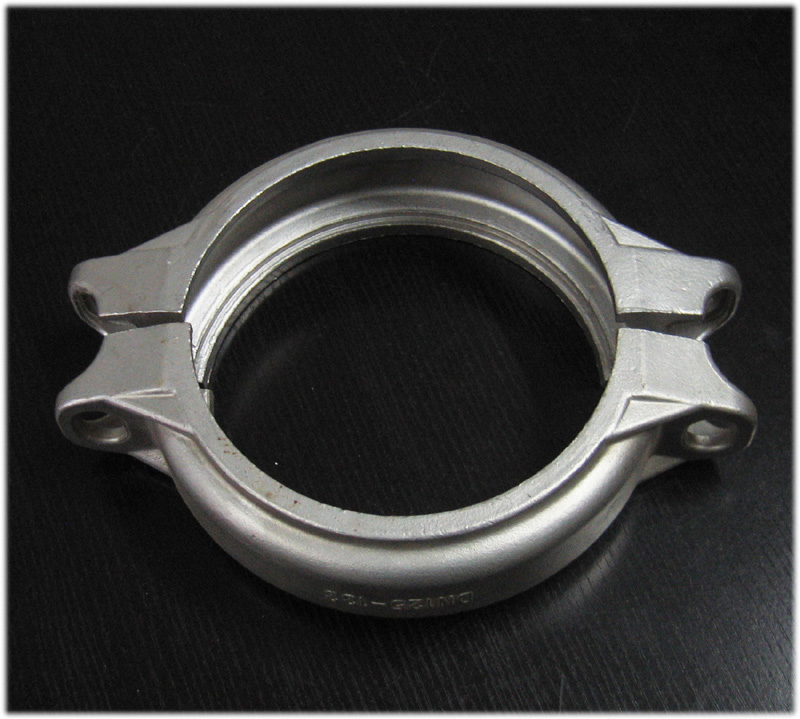

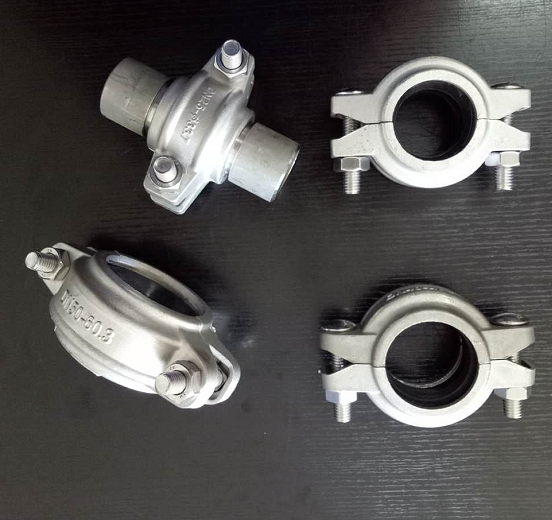

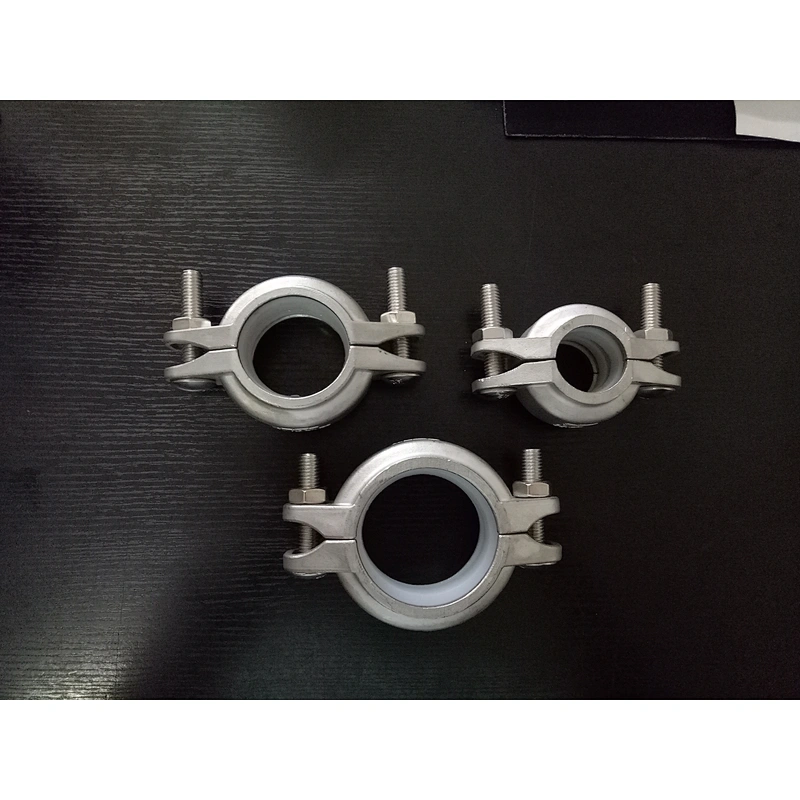

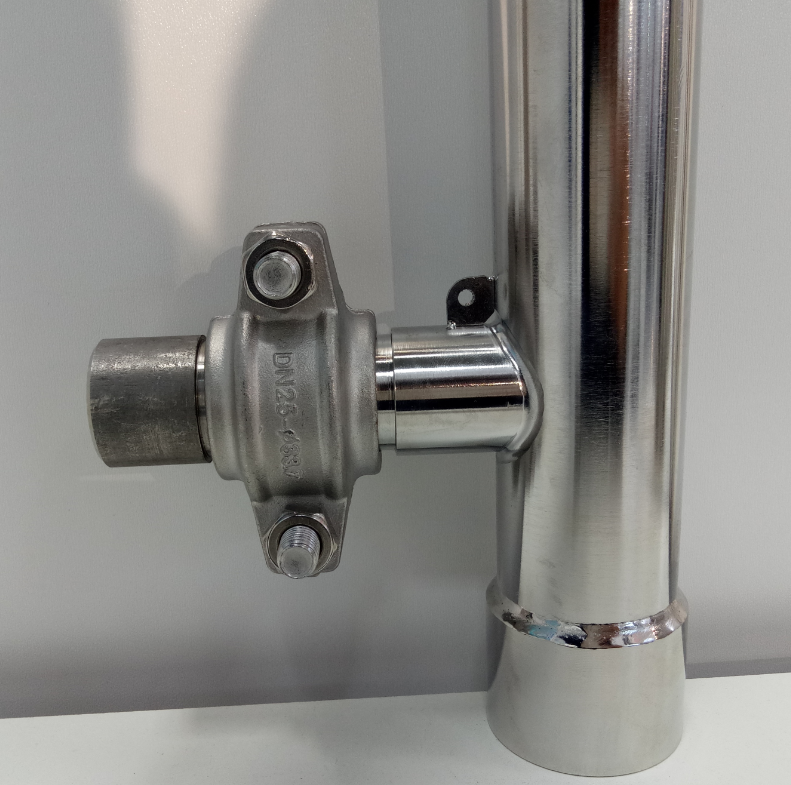

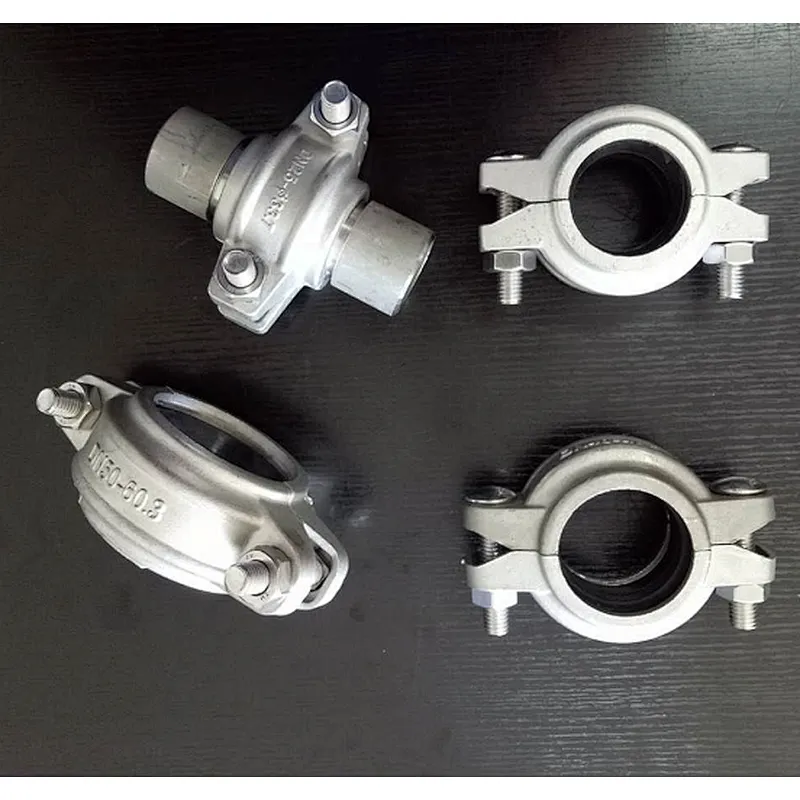

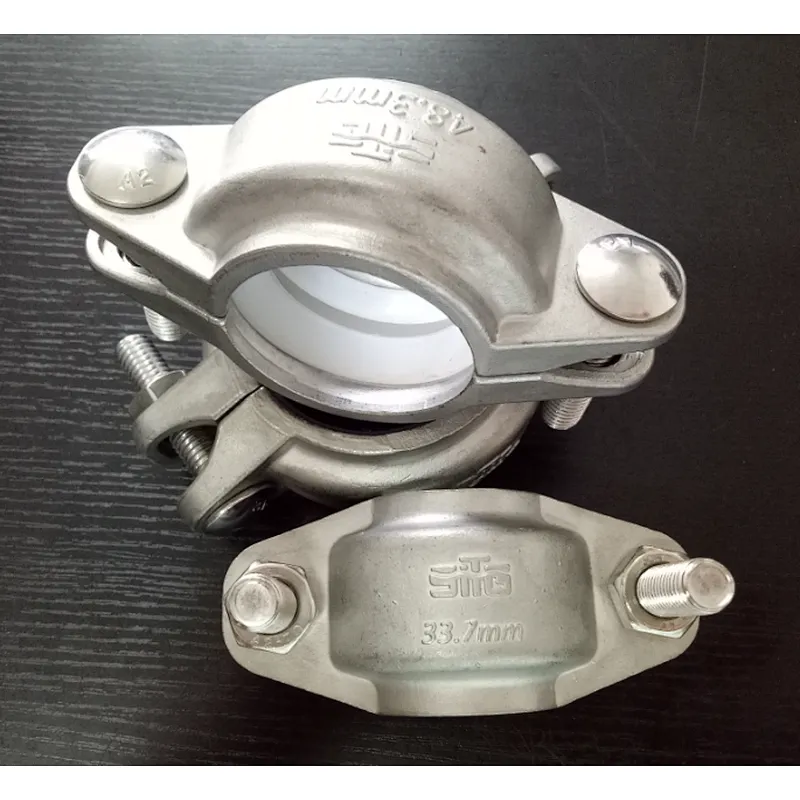

Stainless steel groove coupling for water treatment equipment

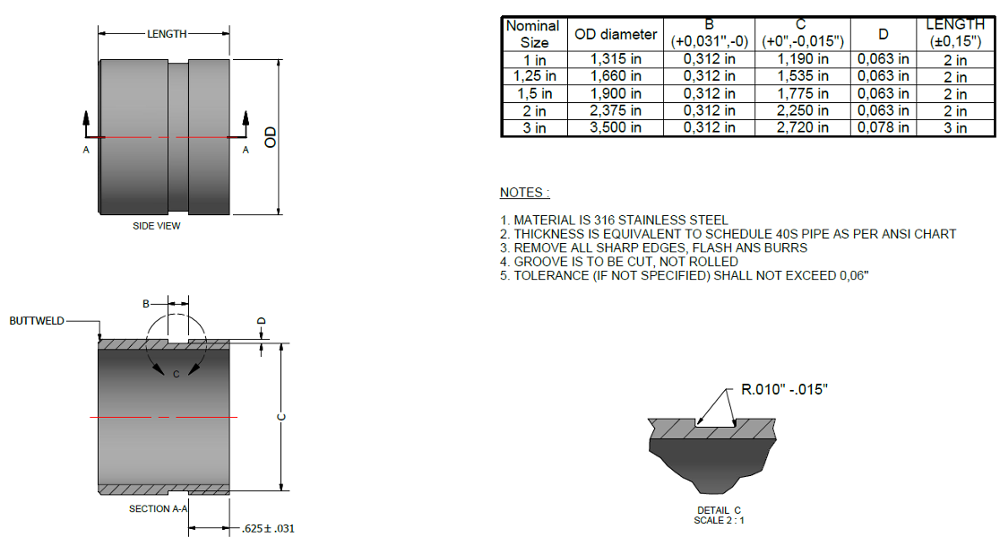

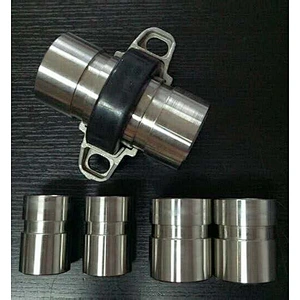

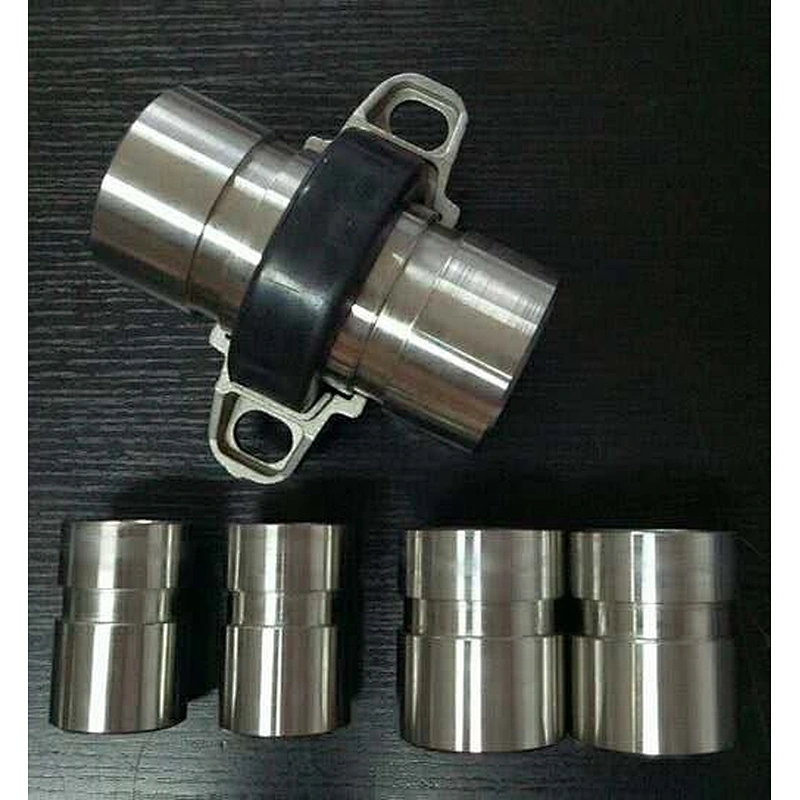

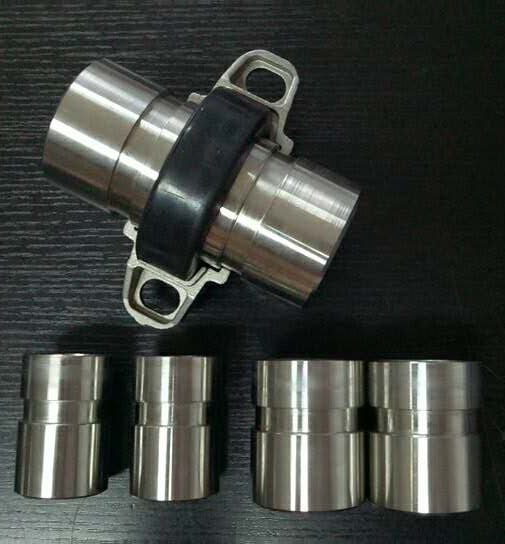

Design for the connection of pipe grooved end in membrane housing, filter,
and equipment with liquid processing with working pressure less than PN25/350PSI

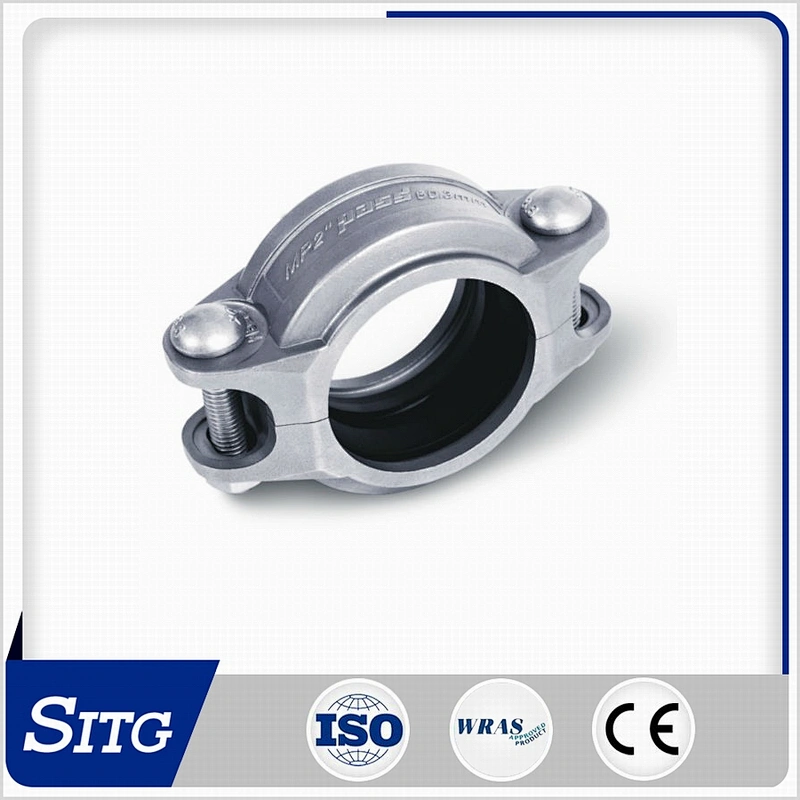

Type: rigid/ flexible
Standard:
Materials: SS304/SS316 BODY
NBR/EPDM/SILICONE RUBBER GASKET
Working pressure: PN16/PN25, 150PSI/300PSI/350PSI

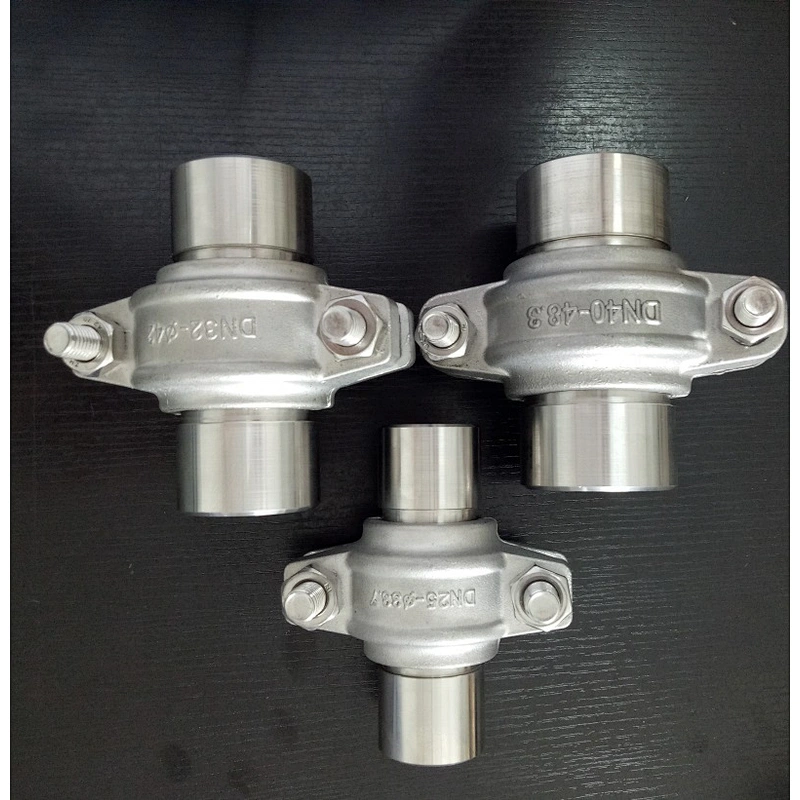

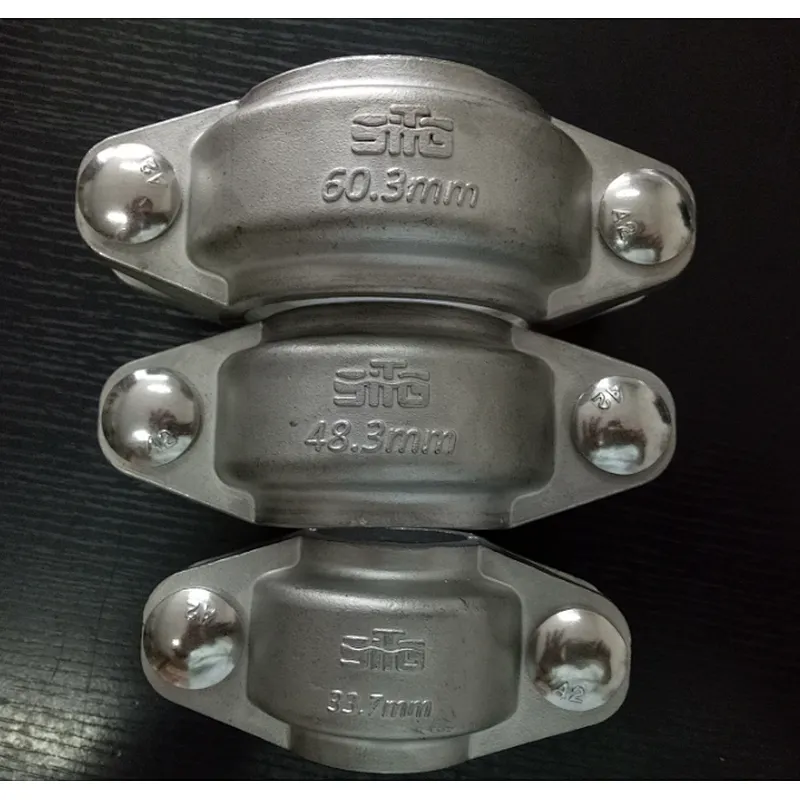

Size available: 3/4"--8"
| Nominal | Pipe | Rated Working | Pipe End | Dimensions | |||
| Size | OD | Pressures | Separation | A | B | C | Weight |
| mm | mm | psi | mm | mm | mm | mm | kgs |
| in | in | bar | in | in | in | in | lbs |
| 20 | 26.7 | 350 | 0-1.6 | 47 | 84 | 41 | 0.269 |
| 0.75 | 1.05 | 24.13 | 0-0.06 | 1.85 | 3.307 | 1.614 | 0.592 |
| 25 | 33.4 | 350 | 0-1.6 | 52 | 90 | 41 | 0.305 |
| 1 | 1.315 | 24.13 | 0-0.06 | 2.047 | 3.543 | 1.614 | 0.671 |
| 32 | 42.2 | 350 | 0-1.6 | 61 | 99.7 | 42 | 0.365 |
| 1.25 | 1.66 | 24.13 | 0-0.06 | 2.402 | 3.925 | 1.654 | 0.803 |
| 40 | 48.3 | 350 | 0-1.6 | 67 | 106.3 | 42 | 0.424 |
| 1.5 | 1.9 | 24.13 | 0-0.06 | 2.638 | 4.185 | 1.654 | 0.933 |
| 50 | 60.3 | 350 | 0-1.6 | 81 | 121 | 42 | 0.467 |
| 2 | 2.375 | 24.13 | 0-0.06 | 3.189 | 4.764 | 1.654 | 1.028 |
| 65 | 76.1 | 350 | 0-1.6 | 98 | 147.3 | 43 | 0.586 |
| 2.5 | 3 | 24.13 | 0-0.06 | 3.858 | 5.799 | 1.693 | 1.29 |
| 80 | 88.9 | 350 | 0-1.6 | 111 | 160.9 | 43 | 0.732 |
| 3 | 3.5 | 24.13 | 0-0.06 | 4.37 | 6.335 | 1.693 | 1.611 |
| 100 | 108 | 350 | 0-3.2 | 132 | 183.3 | 47 | 1.136 |
| 4.2501 | 24.13 | 0-0.13 | 5.197 | 7.217 | 1.85 | 2.5 | |
| 100 | 114.3 | 350 | 0-3.2 | 138 | 189.5 | 47 | 1.197 |
| 4 | 4.5 | 24.13 | 0-0.13 | 5.433 | 7.461 | 1.85 | 2.634 |
| 125 | 133 | 350 | 0-3.2 | 157.4 | 209.1 | 49 | 1.334 |
| 5.25 | 24.13 | 0-0.13 | 6.197 | 8.232 | 1.929 | 2.935 | |
| 125 | 141.3 | 350 | 0-3.2 | 164.4 | 216.3 | 49 | 1.525 |
| 5 | 5.563 | 24.13 | 0-0.13 | 6.472 | 8.516 | 1.929 | 3.355 |
| 150 | 159 | 300 | 0-3.2 | 184.2 | 236 | 55 | 1.826 |
| 6.259 | 20.67 | 0-0.13 | 7.252 | 9.291 | 2.165 | 4.018 | |
| 150 | 168.3 | 300 | 0-3.2 | 194.2 | 246.2 | 55 | 1.881 |
| 6 | 6.625 | 20.67 | 0-0.13 | 7.646 | 9.693 | 2.165 | 4.139 |
| 200 | 219.1 | 300 | 0-3.2 | 251 | 310 | 60 | 3.575 |
| 8 | 8.625 | 20.67 | 0-0.13 | 9.882 | 12.205 | 2.362 | 7.865 |
Special specs. available upon request
