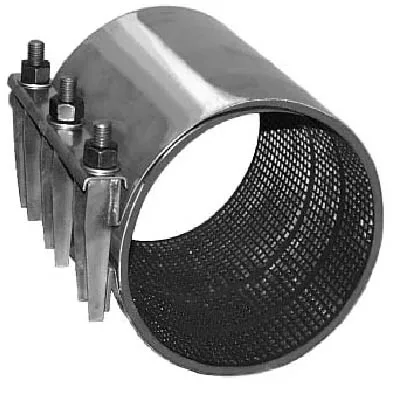

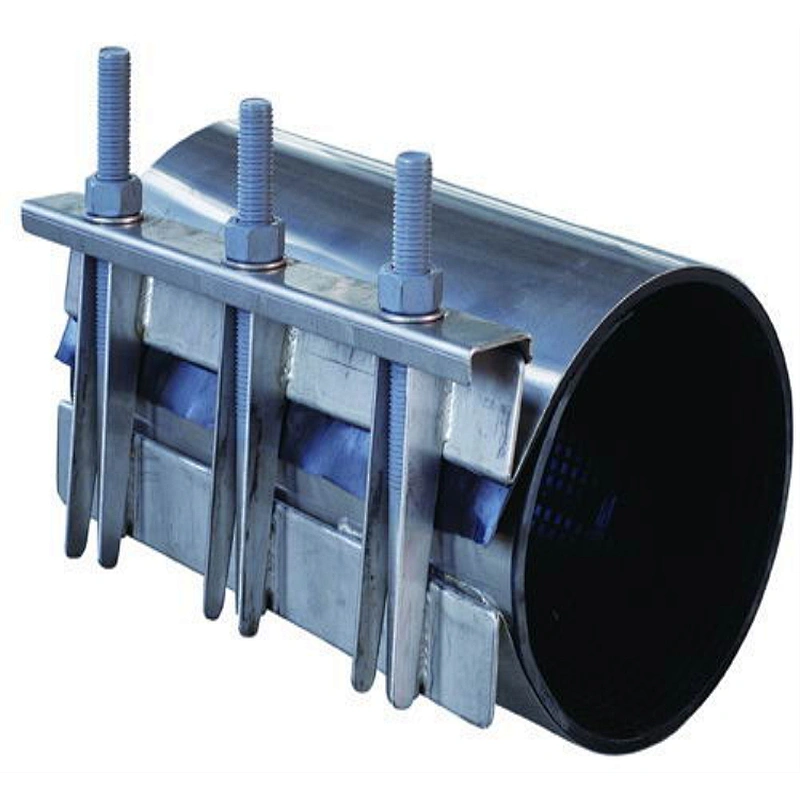

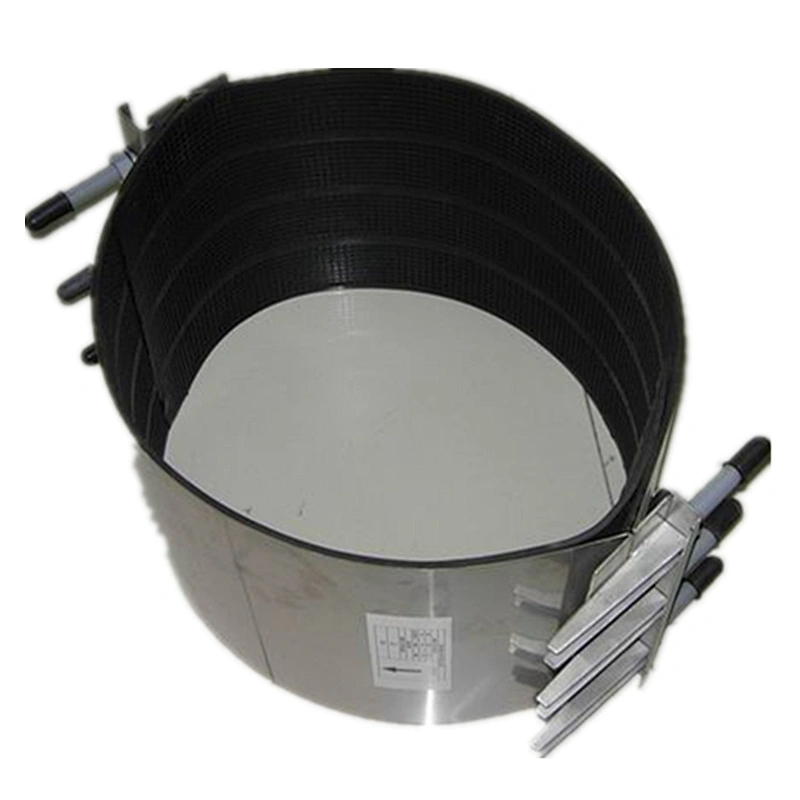

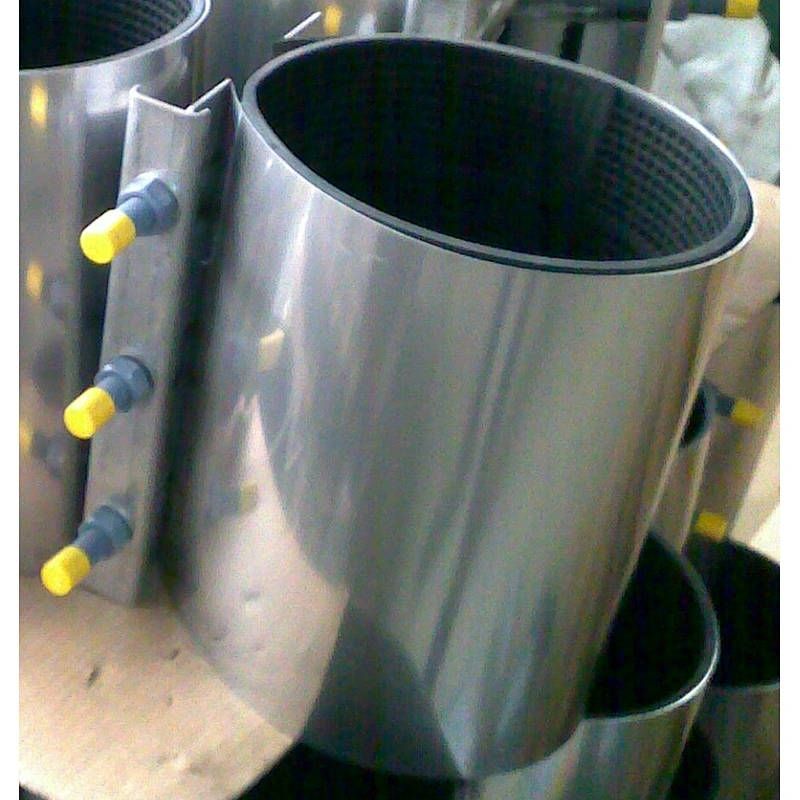

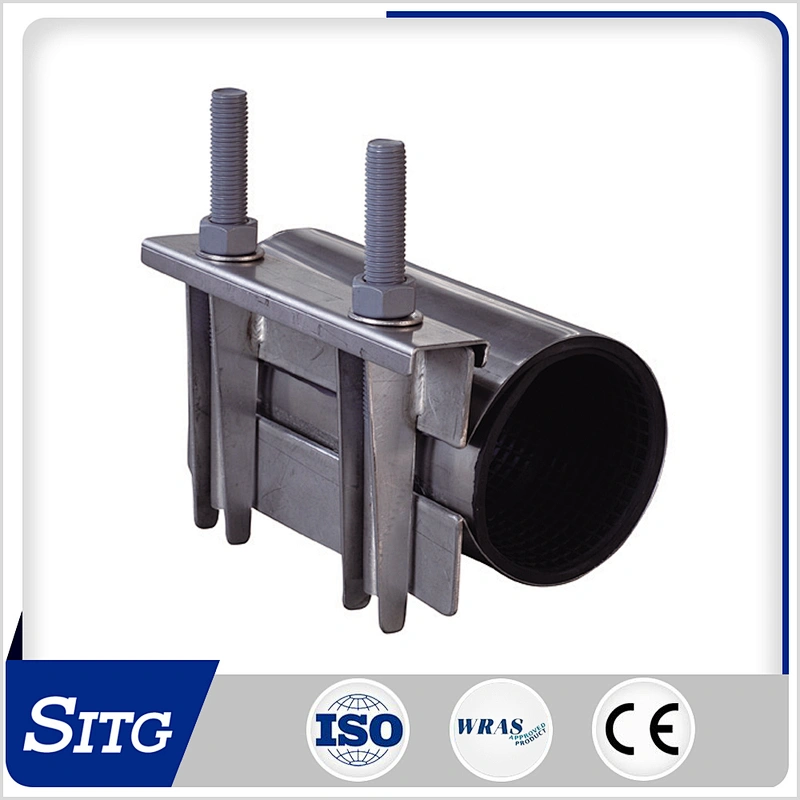

Stainless Steel Repair Clamp

Model NO.: STR-SRP
Price:: US $ 13.00-400.00 / sets
Delivery: FOB
Minimum order quantity: 200 sets
Supply Ability: 8000 sets / Month
Country of Origin: Tianjin
Stock Time: 30 Days

Quantity:

Product Description
Basic Information

Product Description

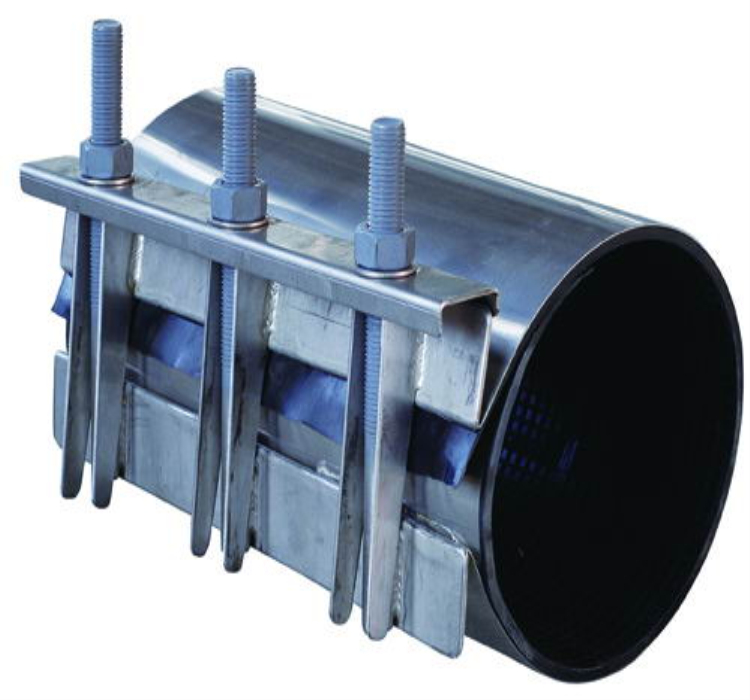

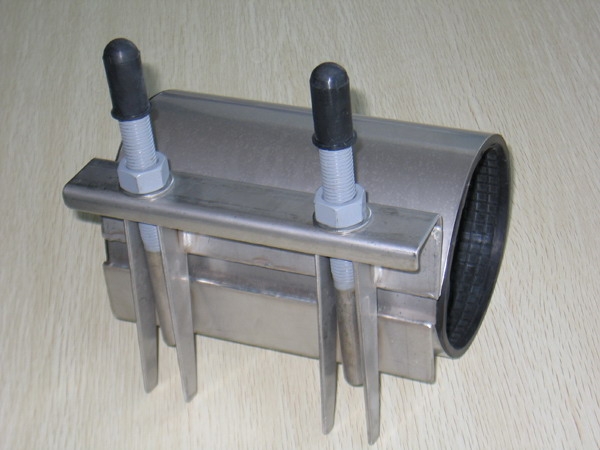

Single,double,triple band avialble

Size: 2"/3"/4"/6"/8"/10"/12",bigger size by double bands or triple bands untill 36"

Length:150mm,191mm,200mm,300mm,382mm,400mm,500mm

Working Pressure:PN6/10/16

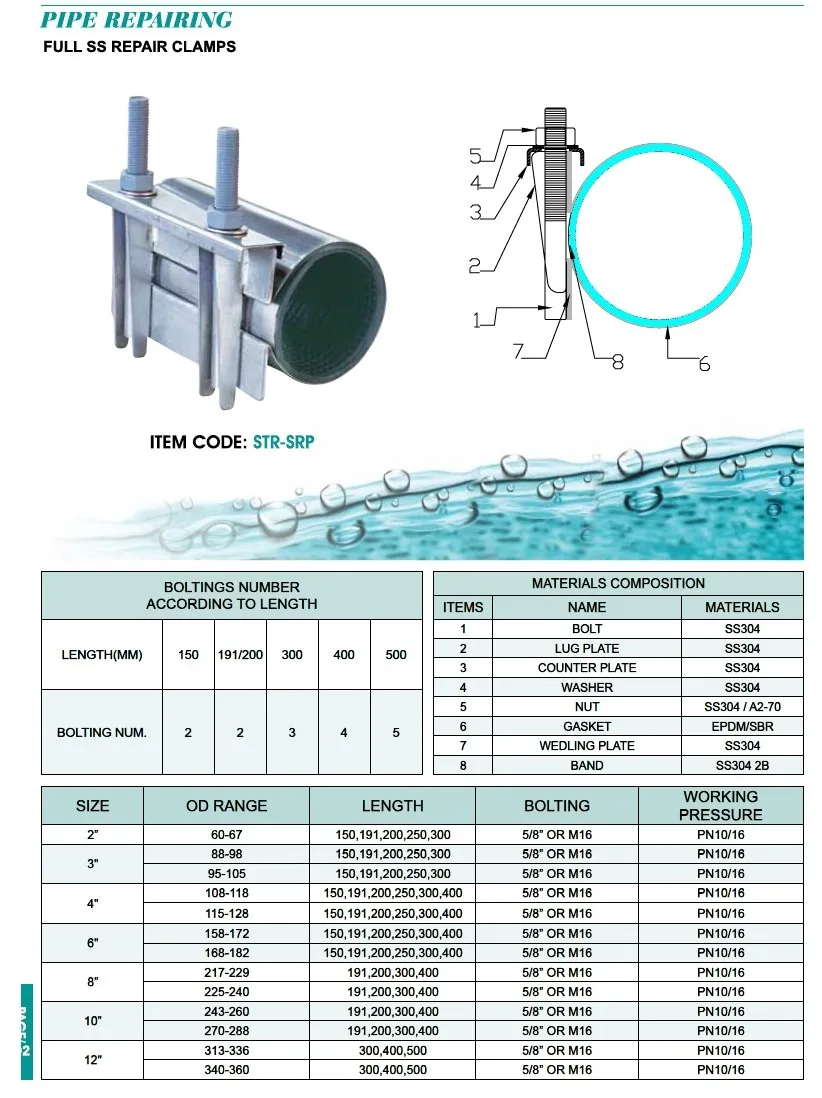

Material specification:

• All metal parts: stainless steel AISI 304 or AISI 316L.

• Metal parts have been deburred and are passivated to restore the corrosion resistance to its original state after the welding process.

• Single band (one section) with a working range of 7-11 mm depending on the diameter. For an overview of all working ranges please see our price-list.

• Standard certified rubber gaskets EPDM or NBR. The rubber is tapered and has a waffle pattern.

• Seamless rubber lining for every clamp diameter.

• Bridge plate is vulcanized into the rubber gasket.

• U-shaped lifter bars.

• Stainless steel, electrolytic zinc plated nuts to prevent galling.

• Stainless steel washers.

• No loose parts that may get lost during installation.

• No special tools required: a simple wrench will do the job.

• Special tape is used to fix the rubber gasket to the stainless steel band. This tape is flexible and reinforced with glassfibre thread to withstand hot and humid conditions and guarantee a long storage capability.
