Whole House use water prefilter

SS Filter Housing

Design for water prefiltration, use at home,resteraunt or small public unit.

Materials: SS304L/316L body & cover

Food grade Silicone rubber gasket

Standard wall thickness: 1.0mm, 1.5mm, 2.0mm

Body Diameter: JUMBO 127MM suits for big blue cartridge

Standard 89/104MM suits for standard 2.5"cartridge

High pressure: 76/89mm

Working pressure: 1.0-1.5mm WT 6-10Bar (150PSI)

2.0mm WT 16-25bar (350PSI)

Flow rate: Upto 2.5 MT/H (15000 GPD)

Port Size: 3/4", 1"

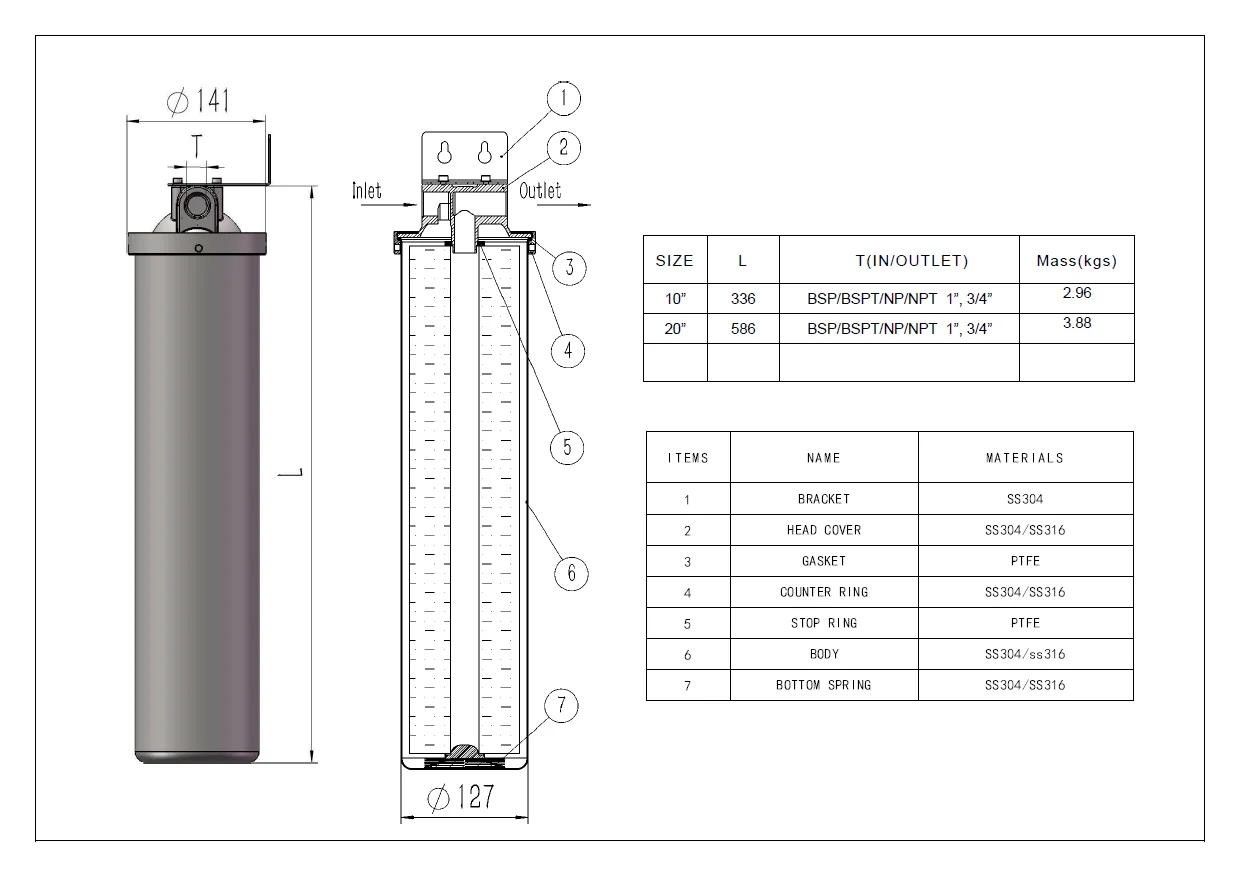

Other technical Data sheet:

Special specs. available upon request

Each piece in a paper board box, then in master carton, shrinked on pallet by PE film or in plywood cases
