- Type:Adjustable Relief Valves
- Type:Pressure Reducing Control Valves
- Type:Water Pressure Reducing Valves
- Type:Pressure Regulators
- Type:Balancing Valves
- Type:Float Valves
- Type:Drain Valves
- Type:Water Regulating Valves
- Type:Air Valves & Vents
- Place of Origin:CN;HEB
- Application:General
- Temperature of Media:Low Temperature
- Temperature of Media:Normal Temperature
- Power:Hydraulic
- Media:Water
- Structure:Diaphragm
- Brand Name:SITG
- Model Number:1.5"-4"
- Port Size:1.5"-4"
This pressure reducing valve are piloted hydraulic valves by controlved by line pressure. The pilot valve had a spring-fixed diaphragm, which is sensitive to down stream pressure. The pilot's spring is preset to a desirable reduced pressure. The pilot valve maintains a constant downstream pressure by opening and closing of the main valve. The pressure is maintained constant regardless of changes in the flow rate.
Size available:
| Threaded type | |||
| SIZE | approx wt.(KGS) | ||
| 1.5 | 3.0 | ||
| 2" | 3.3 | ||
| 3" | 4.8 | ||
| 4" | 16.5 | ||
| Flange type | |||
| SIZE | approx wt.(KGS) | ||
| DN50 | 7.5 | ||
| DN80 | 14.6 | ||
| DN100 | 19 | ||
| DN150 | 30 | ||
| DN200 | 54 | ||
Special specs. available upon request

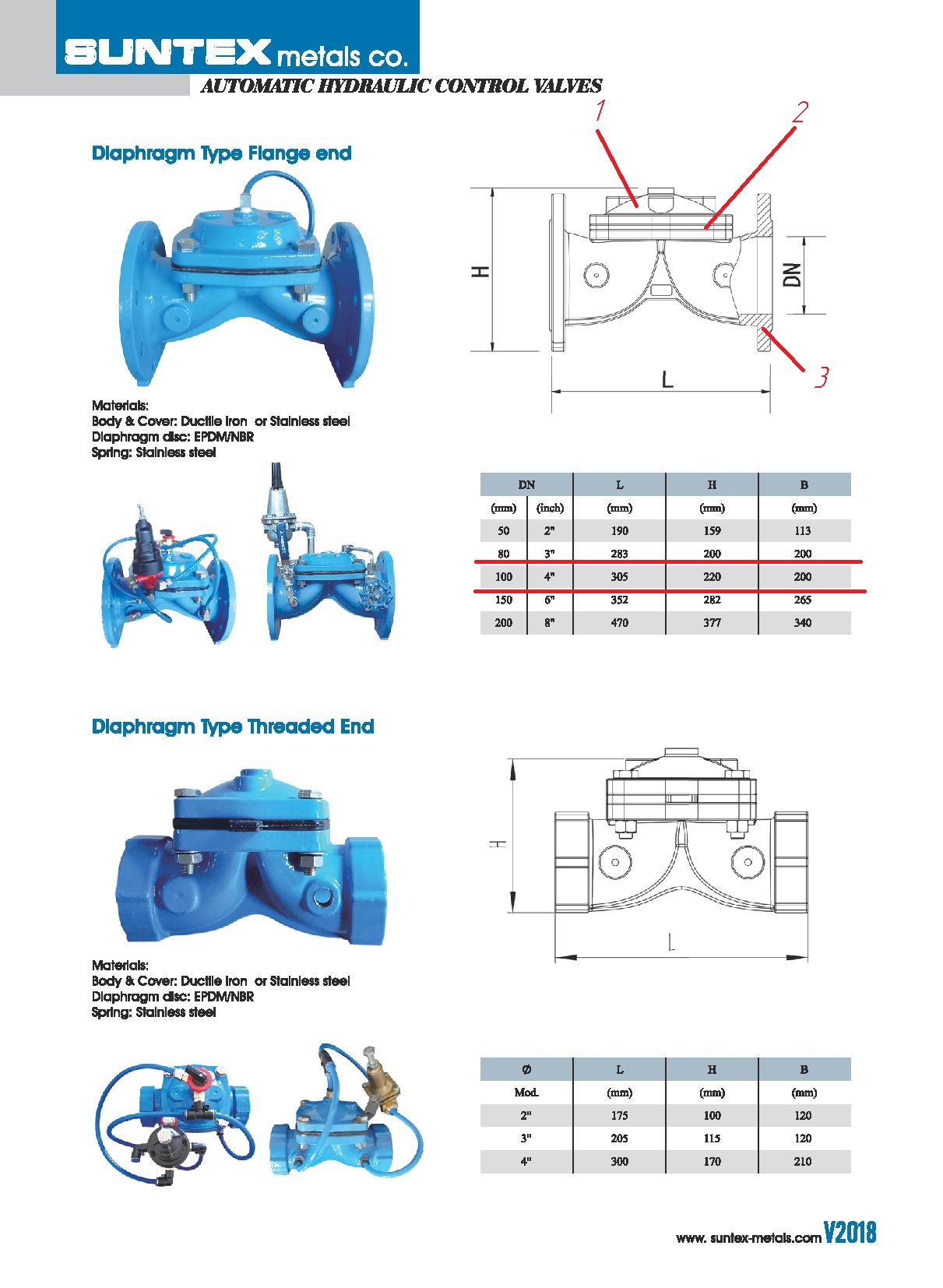

Specs. Data sheet:

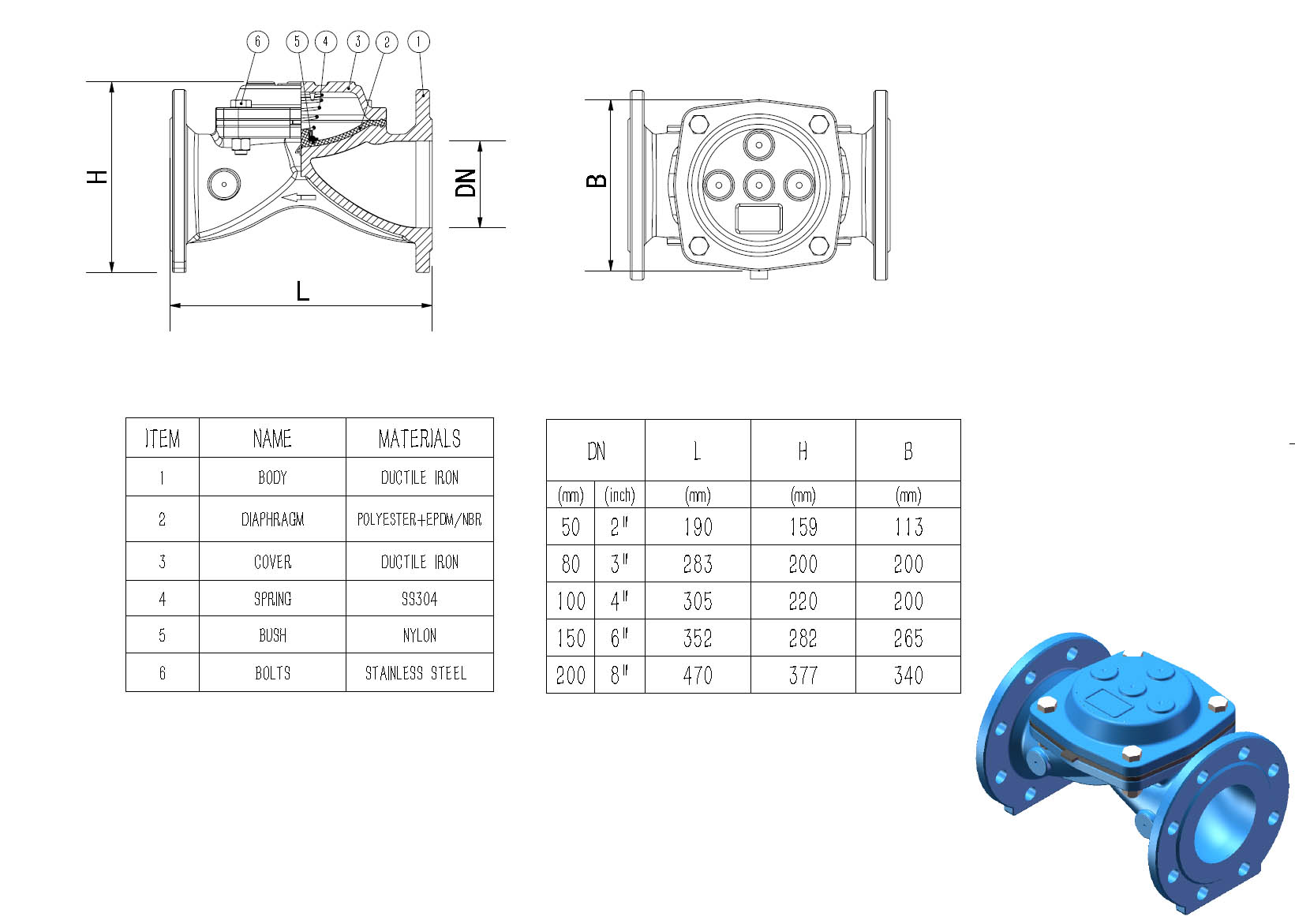

Below is the main valve's technical data:
Accessaries for the entire valves:
Pressure reducing pilot: SS304 or plastic
Hydraulic tube: SS304 or plastic
Connectors: SS304 or plastic
Needle valve: SS304
ball valve: SS304
pressure gauge: ss304 shell
Note: stainless steel body or covers are also available upon request.
