Solenoid Control Valve Diaphragm type threaded ends for irrigation

• Type:Pressure Reducing Control Valves
• Type:SOLENOID VALVES
• Place of Origin:CN
• Application:General
• Temperature of Media:Normal Temperature
• Power:Solenoid
• Media:Water
• Structure:Diaphragm
• Model Number:2",3",4"
• Port Size:2"-4"

Solenoid Control Valve is an on-off control valve that either opens or closes upon receiving an electrical signal to the solenoid pilot control. This valve consists of a Hytrol main valve and a three-way solenoid valve that alternately applies pressure to or relieves pressure from the diaphragm chamber of the main valve. It is furnished either normally open (de-energized solenoid to open) or normally closed (energized solenoid to open).

Typical Applications

• Industrial uses for the solenoid control valve are many and include accurate control of process water for batching, mixing, washing, blending or other on-off type uses.
• Liquid level control can be provided by using a float switch or electrode probe which sends an electrical signal to open or close the valve as needed.

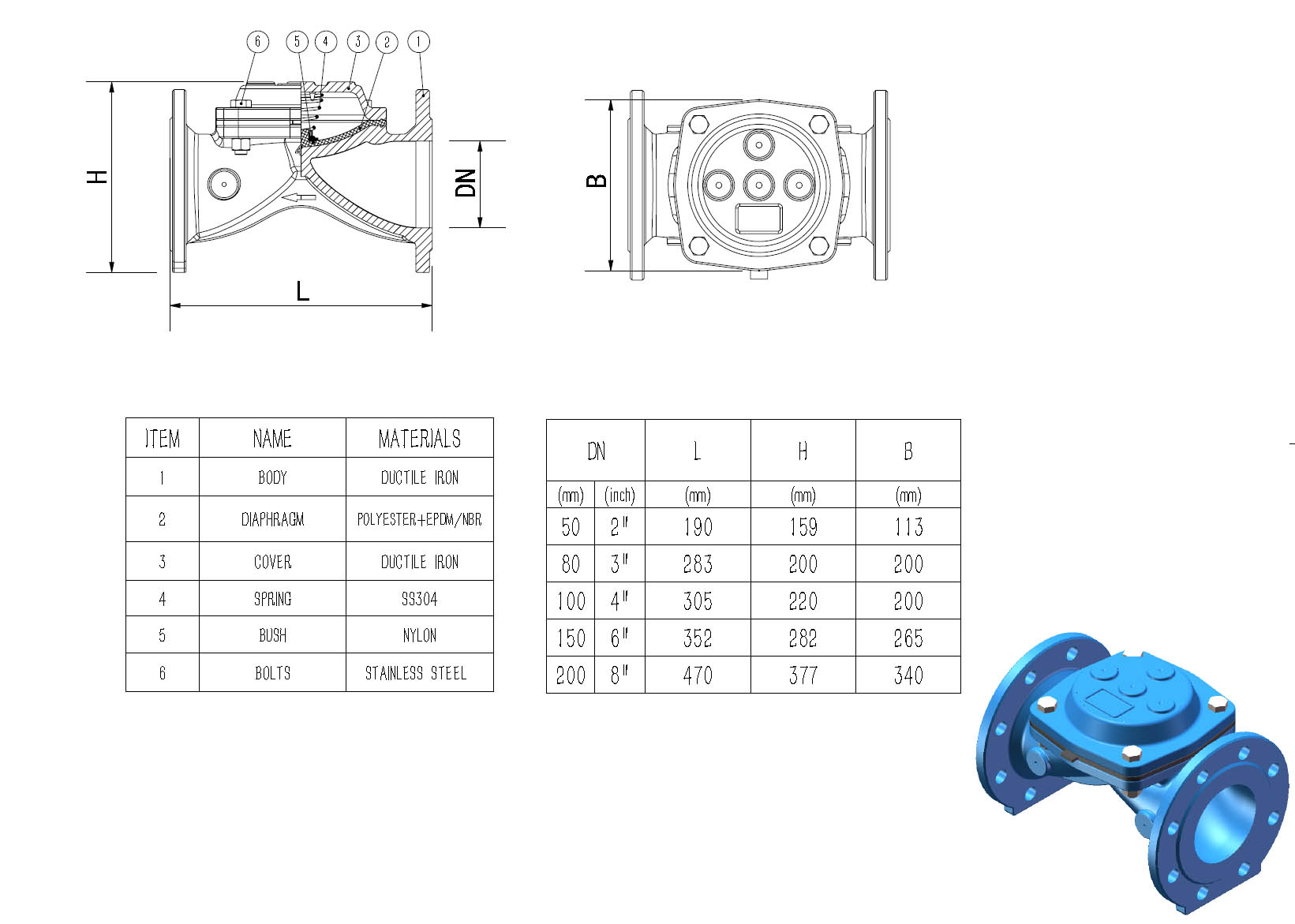

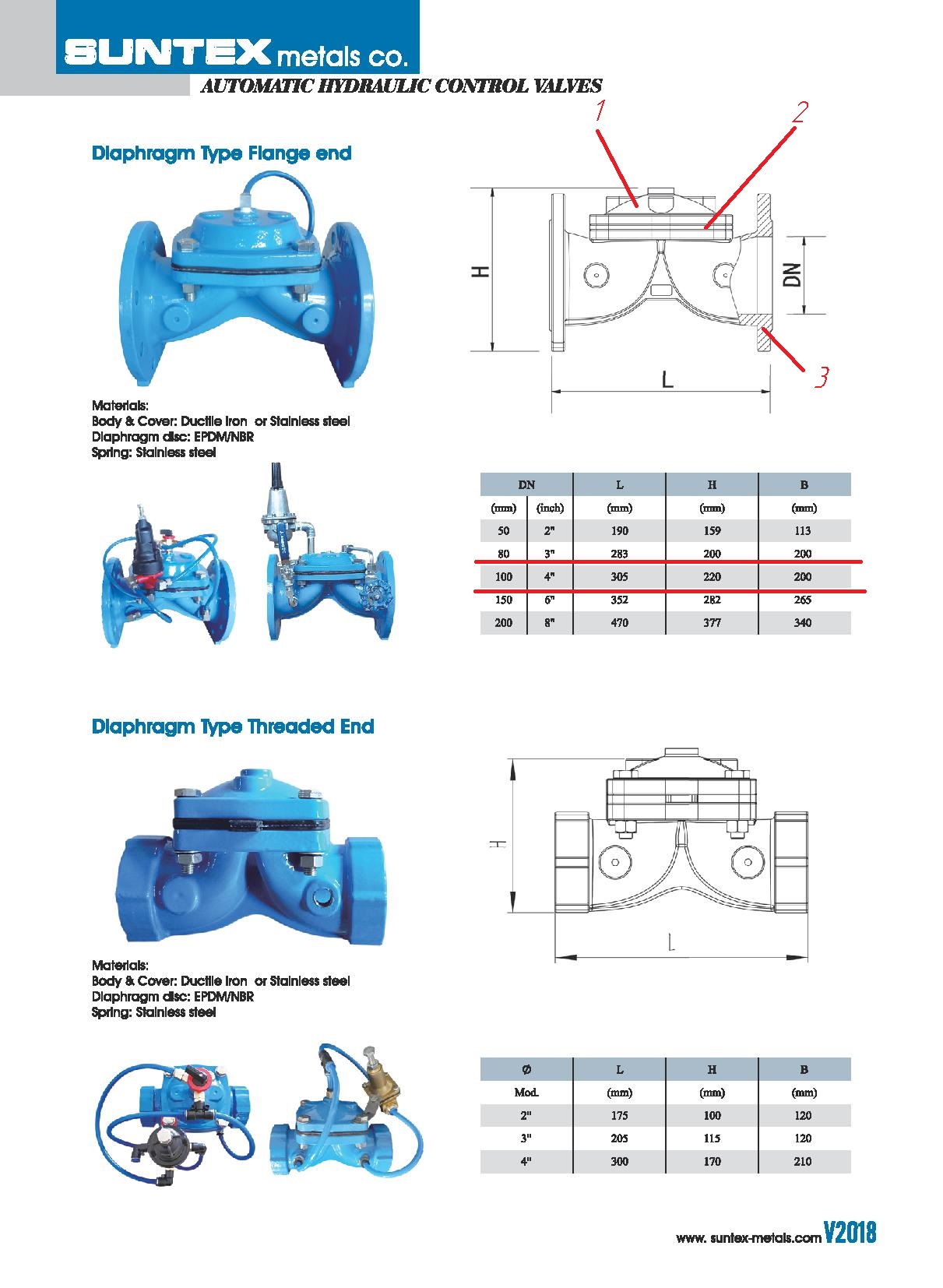

Below is the main valve's technical data:

Accessaries for the entire valves:

Pressure reducing pilot: SS304 or plastic

Hydraulic tube: SS304 or plastic

Connectors: SS304 or plastic

Needle valve: SS304

ball valve: SS304

pressure gauge: ss304 shell

Note: stainless steel body or covers are also available upon request.
